CCS CHAdeMO EVCC Electric Vehicle Communication Controller

EVCC is a full-featured charging communication converter for the vehicle, which can convert the CAN communication signal of the Chinese standard electric vehicle into a PLC signal conforming to the ISO15118 (EIM) and DIN70121 communication protocol standards, and has the function of diagnosis and debugging.GQEVPLC-V3.3 and GQEVPLC-V6.1 CCS/CHAdeMo Charging Communication solutions.Supports ISO15118, DIN70121 Error handling for all exceptions. Easy Control & Monitoring using RS232 Compliant test with CCS EV Charger.


  • Model: Electric Vehicle Communication Controller
  • Operation Voltage Range: DC 9V ~ 16V with Vin DC12V
  • EVCC Wakeup By: CP, I/O wakeup , CAN
  • Part Number: GQEVPLC-V6.1
  • Charging Mode: CCS (AC and DC Charging )
  • CAN Interface: GB/T27930 CAN Interface ISO11898 CAN Interface
  • Features: Supports ISO15118, DIN70121
  • Product Detail

    Product Tags

    CCS/CHAdeMo Charging Communication Solutions
    Product Name: EVCC - Vehicle-End European CCS2 /US CCS1 /Japanese CHAdeMO Standard Charging Communication Converter
    Application Scenario: Domestic new energy electric vehicles for export overseas
    Application Objective: By installing our EVCC in national standard electric vehicles, we can implement communication protocols CCS (S015118 & DIN70121) - GB/T27930. By modifying the charging station and BMS software of domestic electric vehicles, we can enable direct charging with local DC charging stations overseas.

    EVCC is a full-featured charging communication converter for the vehicle, which can convert the CAN communication signal of the Chinese standard electric vehicle into a PLC signal conforming to the ISO15118 (EIM) and DIN70121 communication protocol standards, and has the function of diagnosis and debugging.

    Electric Vehicle Communication Controller (EVCC)
    This is a component in an electric vehicle that communicates with the charging station.It's essential for managing the charging process, especially with DC fast charging.evcc (Software) .This is a local, open-source home energy management system that optimizes electric vehicle charging. It connects with solar panel systems, battery inverters, and smart wallboxes to prioritize using self-produced solar power and taking advantage of dynamic electricity prices. The goal is to increase self-consumption of green energy and reduce reliance on cloud services.

    Product Features

    Electric Vehicle Communication Controller (EVCC)
    Meet DIN70121, ISO15118 charging standards
    Supports remote upgrade of ISO 15118-1/2/3 software
    With diagnostic and debugging functions
    Support mainstream electronic locks from different manufacturers (three-wire, four-wire)
    With electronic lock signal detection function
    Support BMS wake-up function
    Support exception handling and compatibility testing
    With short circuit protection
    Terminating resistors are optional
    Support custom protocols
    Compatibility test with CCS electric vehicle charging pile

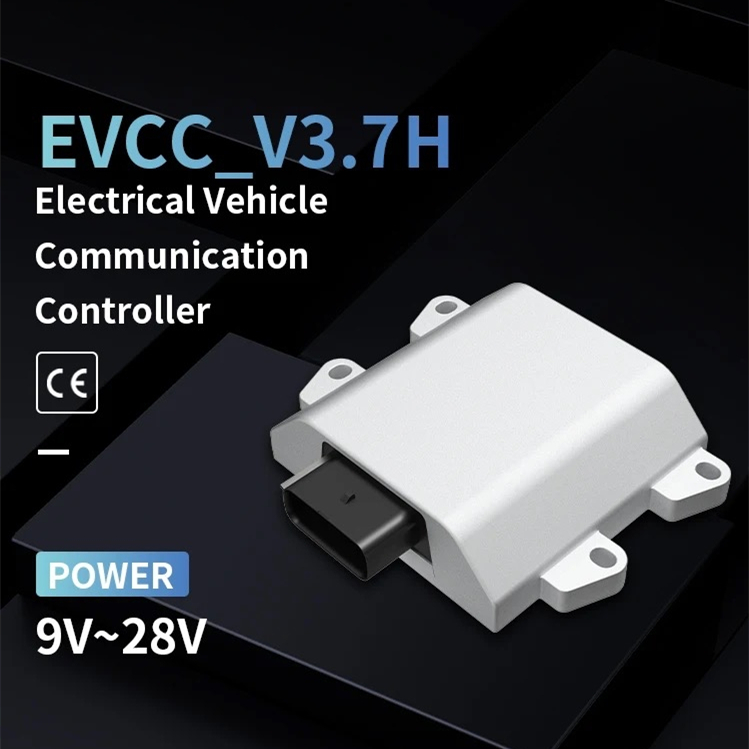

    EV Charging Communication Controller EVCC

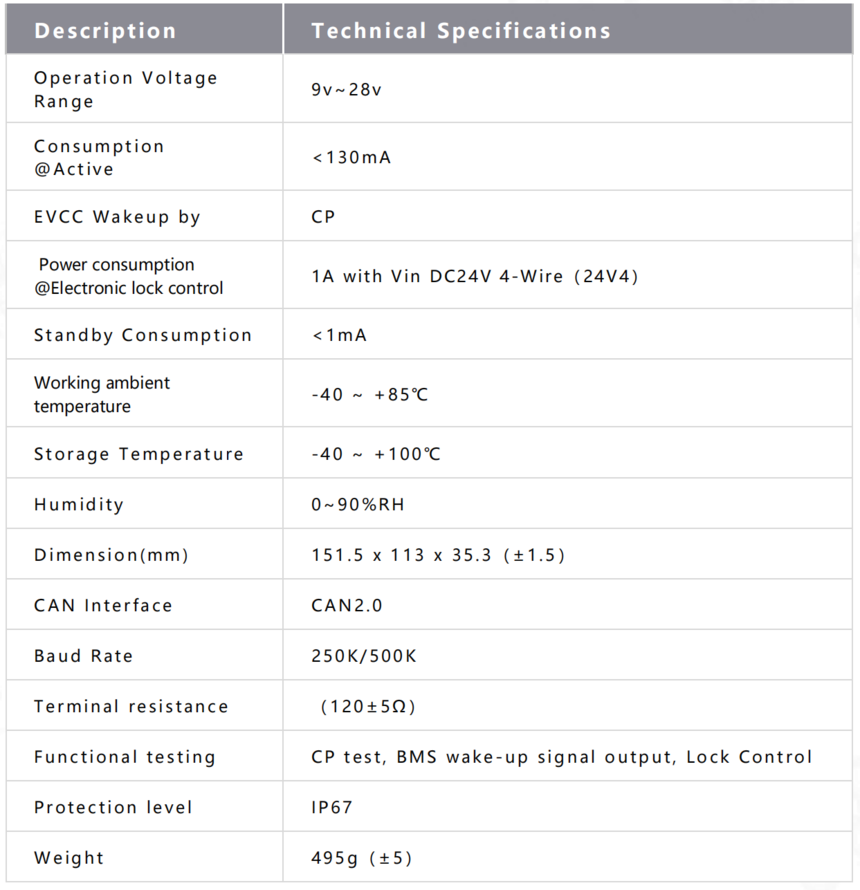

    Specification

    EVCC CCS Communication Controllerfor EV
    Electric Vehicle Communication Controller
