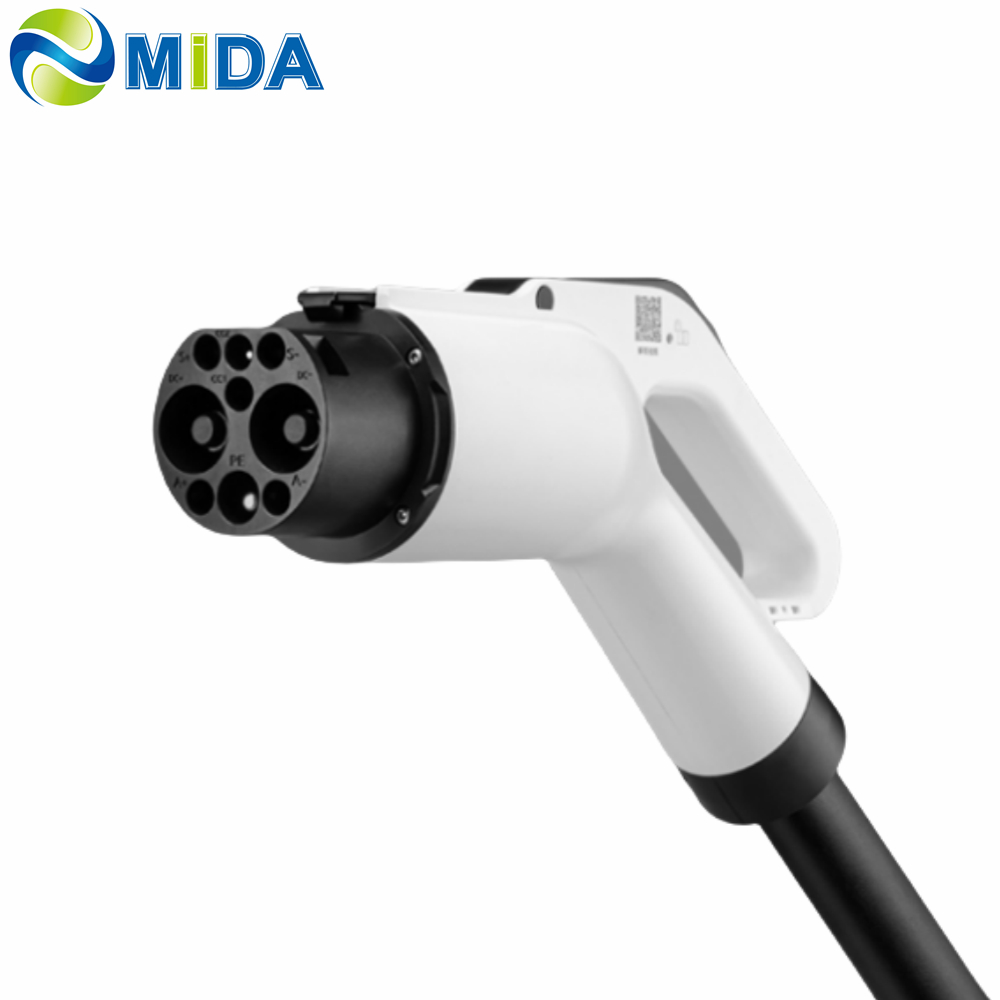

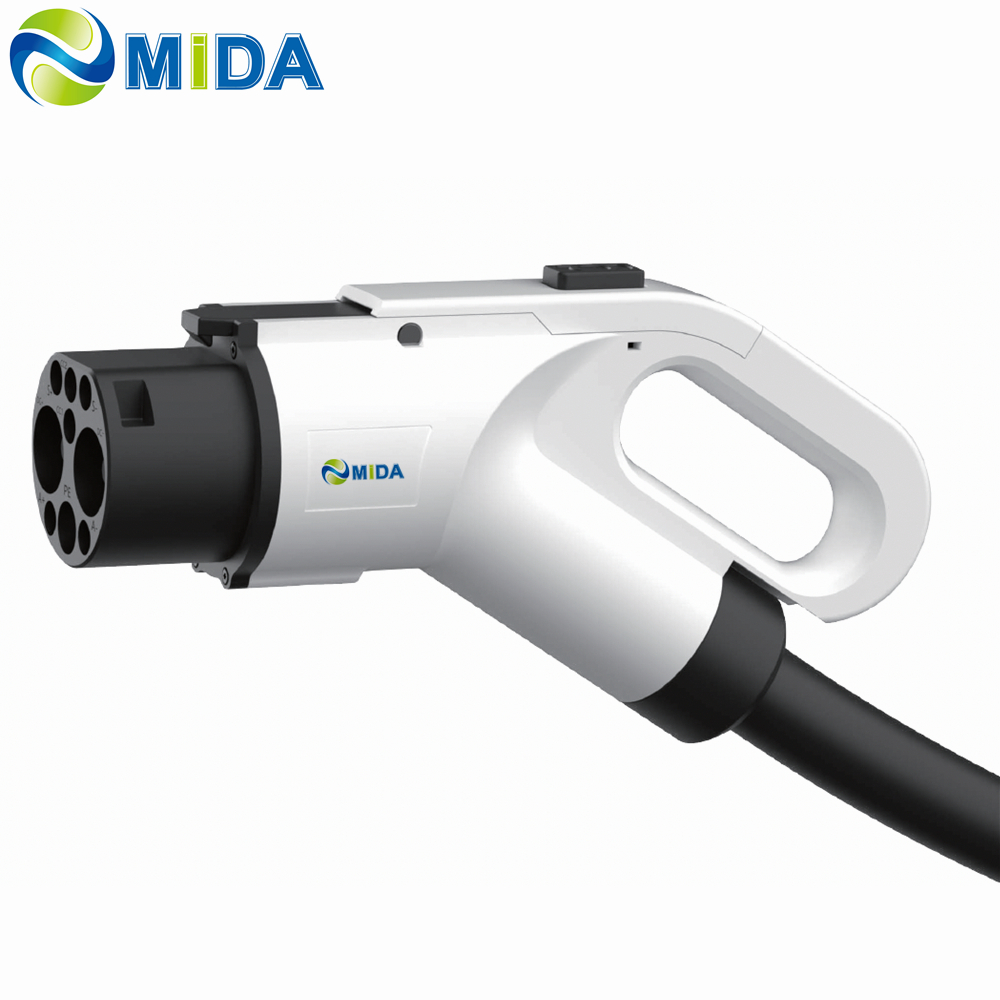

800A GBT Connector Oil Cooling Charging Cable for 800kw DC Fast Charger Station

An 800A GBT Connector DC 1000V refers to a high-power DC charging connector that adheres to the GB/T standard, Oil Cooling HPC Charging Cable specifically designed for 800kw Liquid Cooled EV Charging Station in China.

Model: MIDA-GBT-EV800P

Rated voltage: DC 1000V

Rated Current: 800A GBT

Therminal temperature rise: <50K

Protection Degree: IP55 Waterproof

Withstand voltage: 2000V

Working temperature: -30°C ~+50°C

Standard: EN 62196-1/ EN 62196-3

Certificate: CE, CQC Approved

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

High power 600A 800A 1000A GBT Gun DC Liquid Cooling charging connector complying with GB/T 20234.3-2023 1000V HPC 800KW GBT Plug Cable For Supercharger Fast Charging Station.

Product Introduction

1,HPC 800A GB/T EV plug is used in DC fast charging & comply with GB/T 20234.3.

2,Combined Charging System (GBT) is based on open and universal standards for electric vehicles. Our 800A HPC GB/T plug is used for direct-current charging at a maximum of 800 kW. Universally compatible, high-quality GB/T Gun EV plugs designed for 10000+ charging cycles.

3,800A GB/T Connector electric car charging plugs integrated temperature sensors (2pcs PT1000) for monitoring the temperature change at the power contacts (between DC+ and DC- terminals). Universally compatible, high-quality GB/T Gun designed for 10000+ charging cycles. GB/T Connector is Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001 standard. 800A GB/T Plug,1000A GB/T Connector.

Product Features

1,HPC 800A GB/T Plug is convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles.

2,Liquid Cooling 800A GB/T Gun design for use in Combined Charging System applications UtiliSes proprietary silver-plated contacts for long-life durability GB/T supporting AC & DC Charging standards of Europe, Asia ,Australia and increasingly global standards.

3,GB/T DC Gun 800A GB/T Connector,125A GB/T Plug ,200A CCS2 EV plug,250A GB/T Charger connector,1000A Liquid Cooled GBT Cable.

4, HPC 800A GB/T Gun Terminal Quick-Change DC High Power EV Charging GB/T Connector With EV Cable.

Specification

Features	1. Meet GB/T 2023.3-2015 standard
	2. Concise appearance, support back installation
	3. Back Protection class IP55
	4.Max charging power: 800kW
Mechanical Properties	1. Mechanical life: no-load plug in/pull out＞10000 times
Mechanical Properties	2. Impat of external force: can afford 1m drop amd 2t vehicle run over pressure
Electrical Performance	1. DC input: 800A 1000V DC MAX
	3. Insulation resistance: ＞2000MΩ（DC1000V）
	4. Terminal temperature rise: ＜50K
	5. Withstand Voltage: 3200V
	6. Contact resistance: 0.5mΩ Max
Applied Materials	1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
Applied Materials	2. Pin: Copper alloy,silver +thermoplastic on the top
Environmental Performance	1. Operating temperature: -30°C~+50°C
