Integrated DC Charger Station 160kW 180kW 320kw Dual CCS2 Charging Piles for EV Truck EV Bus

Integrated DC Charger Station 160kw 180kw 240kw 320kW is a perfect choice for commercial vehicle charging from electric heavy-duty trucks to electric buses. Designed with two CCS2 charging connectors, and charging connectors comply with the GB/T standard and the CHAdeMO standard can be customized.

Rate Power: 120kw ~320kw Integrated DC Charger

Input Voltage: 400V±15%

Input Voltage Type: TN-S(Three Phase Five Wire)

AC Grid Frequency: 45-65Hz

Output Voltage: 150V-1000V

Output Voltage Error: ≤0.5％

Output Current Error: When Output current≥30A:≤±1％ When output current＜ 30A:≤±0.3A

Power Factor: ≥0.99

Leakage current: ≤10mA

Power Frequency Withstand Voltage: 2500VAC

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

60kW~120kW Integrated DC Charger

About Intergated DC Charger Introuduce

Public commercial electric vehicle chargers, 120kW, 160kW, and 200kW DC integrated electric vehicle charging stations, equipped with a GBT CCS Chademo connector.
Integrated DC fast chargers: In contrast, integrated DC fast chargers combine the power conversion unit and charging distributor into a single unit. All components are housed in a single cabinet, typically installed directly in the parking area.

Integrated Fast DC EV charger station are generally easier to install because they require only one mounting location, reducing complexity. However, this also means they take up more space in the charging station and are susceptible to the weather and environmental conditions of their location.

Integrated DC chargers are widely used for installation in garages, commercial locations, operators, charging stations, and parks. This affordable 60-1600kW DC charger is ideal for charging high-speed electric vehicles, as well as many electric vehicles. It will significantly speed up charging for you or your customers.
Our DC chargers offer flexible adjustment and high compatibility, suitable for nearly all vehicle models on the market. They also include multiple protection features to ensure safe charging in rainy and snowy weather.

160kW Integrated DC Charger Station

Floor Mounting 180KW Integrated DC Charger

EV Charger 240kW Integrated DC Charger

320kw Integrated DC Charger Station

Guaranteed Security

160kw 180kw 320kw Integrated DC Charger

EThe European standard 240/320kW integrated charger is mainly used for charging commercial vehicles such as electric heavy-duty trucks and electric buses, as well as special vehicles.
- Flexible configurations 150kw 240kw 300kw 350kw 400kw DC Charging Station
- Supporting CCS, CHAdeMO, GB/T
- Ethernet, Wi-Fi, 4G connection
- OCPP 1.6J & OCPP 2.0
- Smart charging supports dynamic load balancing

300KW 350KW Fast Charger Station

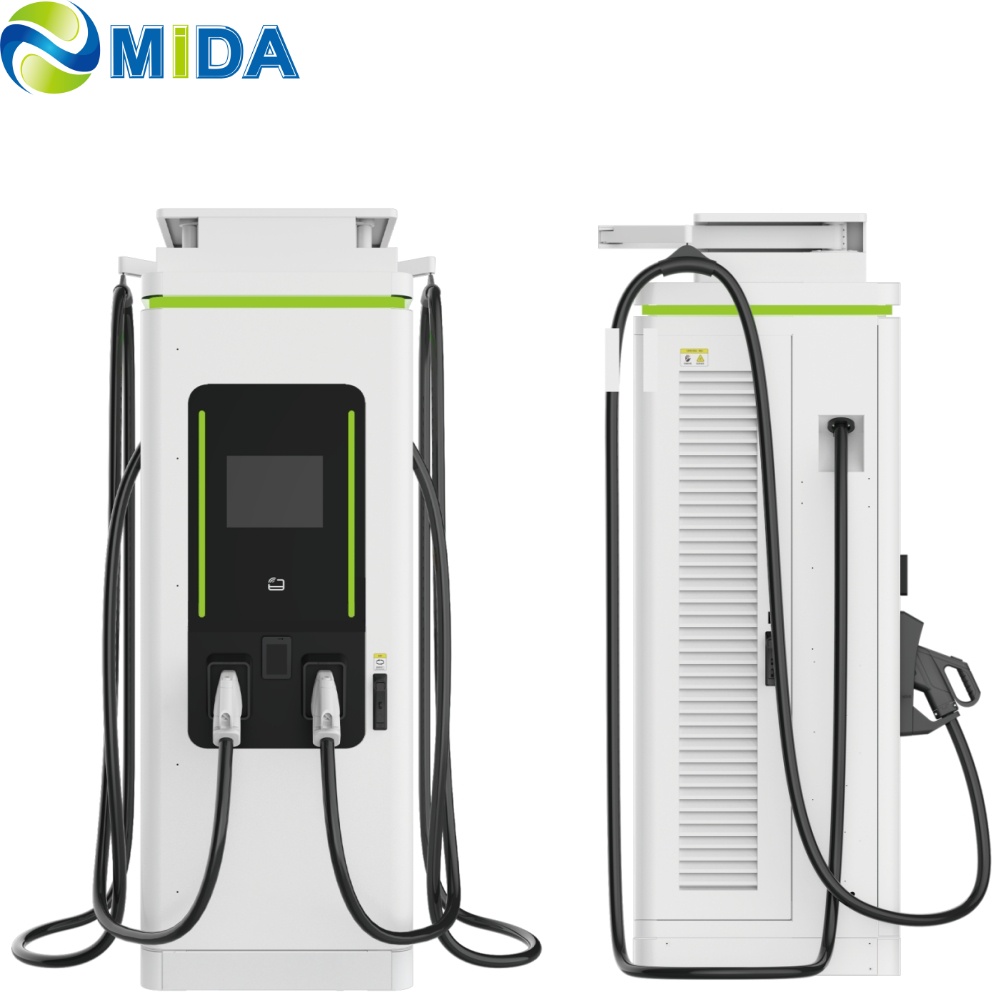

The whole machine is equipped with 2 CCS2 charging
connectors, and other standard charging connectors
such as GB/T standard and CHAdeMO standard can be selected. In addition, an AC charging connector can be added to flexibly meet the diverse demands of markets. The charger can be equipped with a cable management system, and the charging cable does not fall to the ground, making it more labor-saving and durable.
Optional charging interface of different standards
Support local dynamic load adjustment
Multi language switching, supporting OCPP 1.6J
intelligent charging
The equipment management system monitors the
operating status

Wall-mount or Pedestal-mount

Multi-standard Charging
- Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
- Triple outlet ports, two DC cables, one AC cable, and one 3.6kW schuko output
- 120kw 150kw 160kw 180kw 240kw DC Fast Charger Station.
- CCS 2 300KW 360KW 400KW 480KW DC Fast Charging Station Station

General Specifications

Item	240kW DC Charger	320kW DC Charger	480kW DC Charger
Input	Input Voltage	3-phase 400V ±15% AC
	Input Voltage Type	TN-S (Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V
	Max. Output Current	DC - CHAdeMO 125A; CCS 200A; GBT 250A;	AC - Type-2 63A; GBT 32A
Interface	Display	8'' LCD Touchscreen
	Language	Chinese, English, French, German, Spanish, Russian, etc.
	Payment	Mobile APP/RFID/POS
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
	Communication Protocols	OCPP1.6J or OCPP2.0
Working Environment	Working Temperature	-30°C ~ +55°C
	Storage Temperature	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(W x D x H)	7001900650mm
	No. of Charging Cable	Single	Dual
	Cable Length	5m or 7m
Regulation	Certificate	CE/IEC61851-1/IEC61851-23/IEC61851-21-2
