Supercharger 600kW 720kW Liquid Cooled DC Charging Station for EV Truck EV Bus

Introducing 600kW and 720kW DC Fast Chargers
New DC fast charger models offer peak outputs of 600kW and 720kW, respectively.
They comply with all major standards, including NACS (SAE J3400), CCS1, and CCS2. They support high-voltage battery systems.
DC fast chargers provide high-power, fast charging for all electric vehicles, ensuring efficiency and convenience. DC EV chargers convert AC power from the grid to DC, delivering it directly to the EV battery for faster and more efficient charging. MIDA offers both pole-mounted and wall-mounted DC charging stations for vehicles ranging from 20kW to 720kW, equipped with one to three charging connectors to meet various application needs.

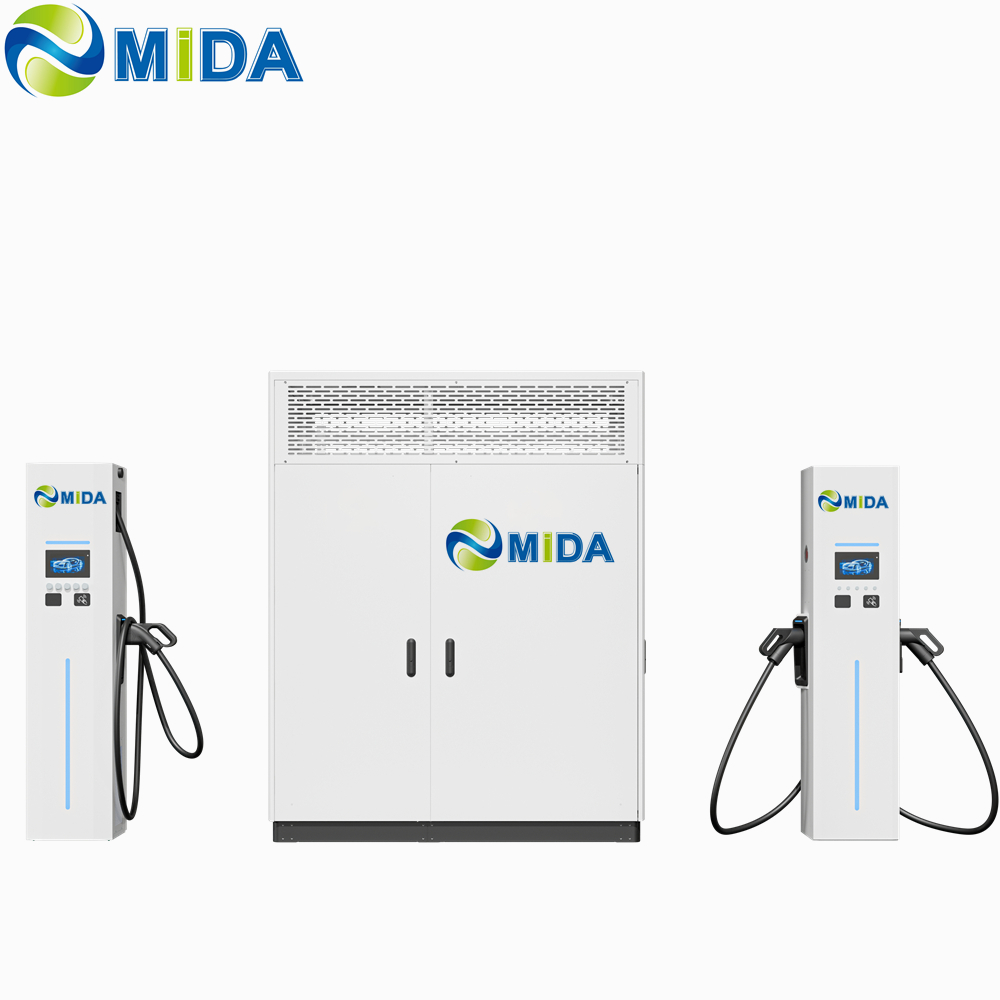

The 600kW DC charger is a "fast" charger that significantly reduces EV charging times, typically achieving an 80% charge in 20-30 minutes, depending on the vehicle's battery and performance. These chargers are designed for high-demand applications such as long-haul trucks, heavy-duty vehicles, and high-performance EVs capable of accepting high power input. They bypass the onboard charger and provide high-voltage DC power directly to the battery.

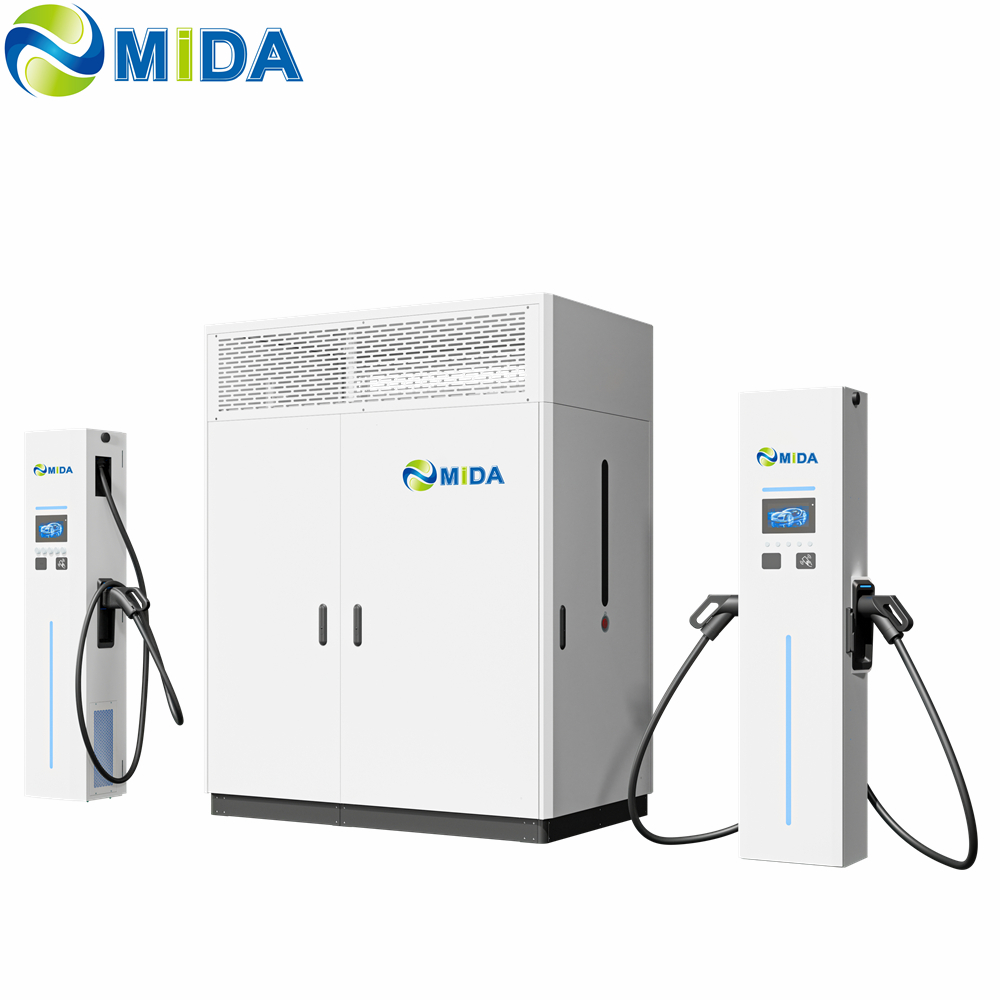

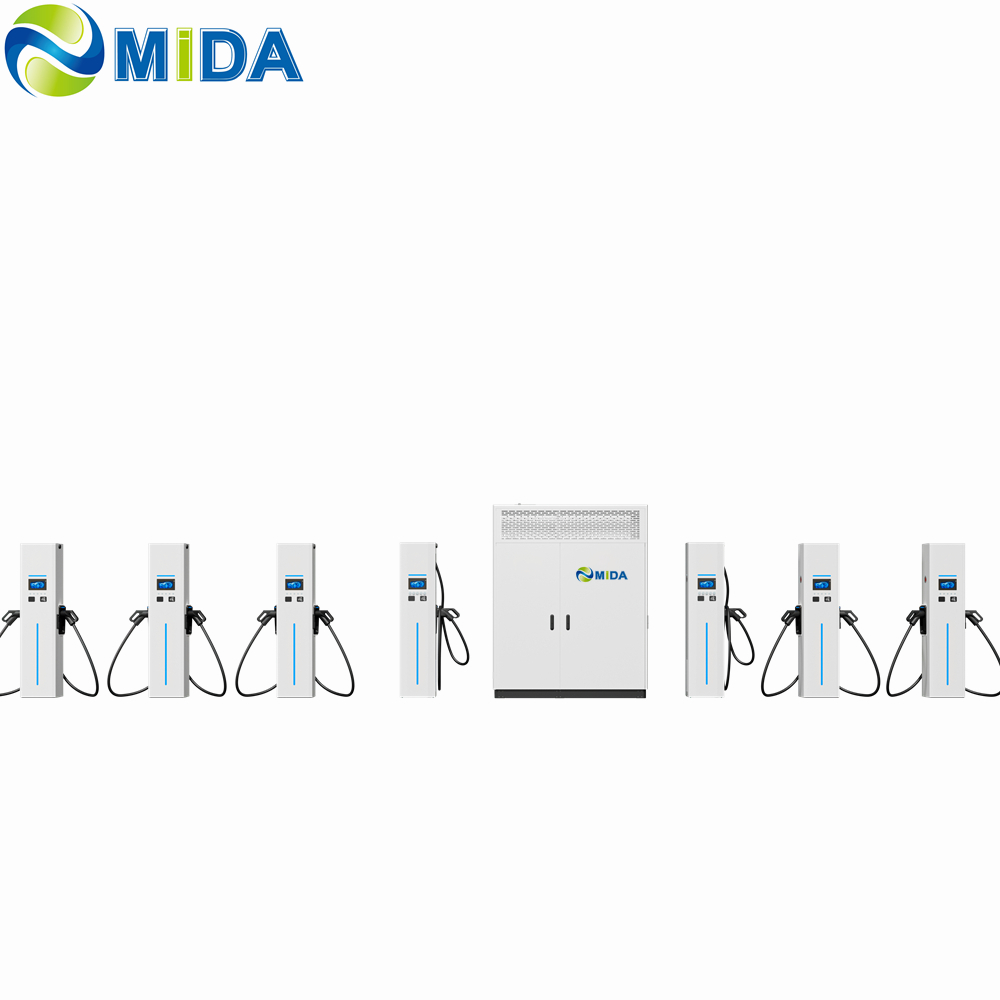

A 720kW DC fast charger can charge an electric vehicle's battery from 20% to 80% in just 30 minutes, depending on the vehicle's battery capacity and charging capabilities. These chargers bypass the onboard charger using direct current (DC), providing extremely fast charging speeds and rapidly increasing range. The system utilizes a power unit and distributor, can be liquid-cooled for high power efficiency, and has multiple output channels to support multiple vehicles simultaneously.
