400kw CCS 2 To GBT Adapter Fast Charger Station for BYD VW ID3 ID4 ID6.

400A CCS 2 to GBT Adapter DC Fast Charging Adapter For GBT China Electric Vehicles  . 400KW CCS2 to GBT DC Fast Ev Charging Adapter for Chinese Car Zeekr BYD VW ID3 ID4 ID6.


  • Item: CCS 2 to GBT Adapter
  • Rated voltage & Current : 1000V / 400A
  • Therminal temperature rise: <45K
  • Withstand voltage: 2000V
  • Working temperature: -30°C ~+50°C
  • Contact impedance: 0.5m Max
  • Certificate: CE Approved
  • Protection Degree: IP54
  • Product Detail

    Product Tags

    MIDA's 400kw CCS2 to GBT adapter is the preferred solution for B2B customers seeking high-speed charging for Chinese electric vehicles. Supporting power up to 250 kW, the adapter is specifically designed for CCS2 charging stations in Europe, North America, and Asia, ensuring compatibility, performance, and durability. MIDA is committed to producing high-quality adapters to meet the needs of fleet managers, charging service providers, and EV infrastructure developers worldwide.

    Charge Chinese electric vehicles at any CCS2 charging station
    MIDA's 400kw CCS2 to GBT adapter allows GB/T-equipped electric vehicles to seamlessly connect to CCS2 charging stations. It is compatible with a wide range of electric vehicle models, including the Volkswagen iD.4/iD.6, BMW iX3, Tesla Model 3/Y, BYD, and Geely, covering most major brands. This compatibility enables B2B customers to support a wide range of electric vehicles, making it an ideal choice for fleets and public charging stations.

    1. 400A CCS2 to GBT EV Adapter: Strong Compatibility
    Seamlessly compatible with Chinese electric vehicles using national standard DC charging ports, including BYD, Volkswagen ID.4/ID.6, ROX, Cheetah, Avatar, Xpeng Motors, NIO, and other electric vehicles for the Chinese market.
    2. 400kW CCS Combo 2 to GB/T EV Adapter:
    Enables global charging with CCS2 charging stations—easily achieve fast charging overseas using CCS2 DC fast chargers in the UAE, the Middle East, and other regions.
    3. High-Power Performance of the CCS2 to GB/T EV Adaptor:
    Delivers up to 400kW of DC power, supports voltages from 150V to 1000V, and handles currents up to 400A for fast and reliable charging. Our adapter is capable of delivering up to 400kW (400A at 1000VDC).

    4. The CCS 2 to GBT converter features a rugged and safe design.
    It features an IP54 waterproof rating, a UL94 V-0 flame-retardant housing, silver-plated copper connectors, and built-in short-circuit protection.



    Product Characteristic

    CCS 2 to GBT Adapter

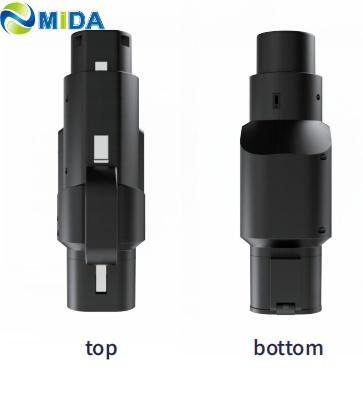

    400kw ccs2 gbt adapter

    Specfications:

    Product Name
    CCS GBT Ev Charger Adapter
    Rated Voltage
    1000V DC
    Rated Current
    400A
    Application
    For Cars with Chademo inlet to charge on CCS2 Superchargers
    Terminal Temperature Rise
    <50K
    Insulation Resistance
    >1000MΩ(DC500V)
    Withstand Voltage
    3200Vac
    Contact Impedance
    0.5mΩ Max
    Mechanical Life
    No-load plug in/pull out >10000 times
    Operating Temperature
    -30°C ~ +50°C

    Features:

    1. This CCS2 to GBT adapter is safe and easy to use

    2. This EV Charging Adapter with built-in thermostat prevent over-heat case damage to your car and adapter

    3. This 250KW ev charger adapter is with self-lock latch prevent plug-off while charging.

    4. The max charging speed for this CCS2 fast charging adapter is 250KW, fast charging speed.

    Product Pictures

    CCS 2 to GBT EV Adapter

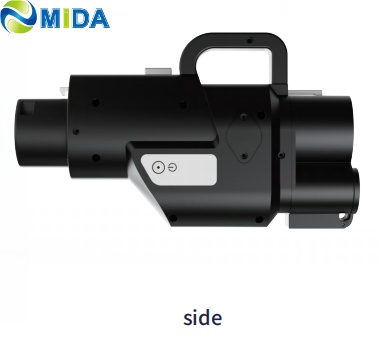

    CCS 2 to GBT Adapter

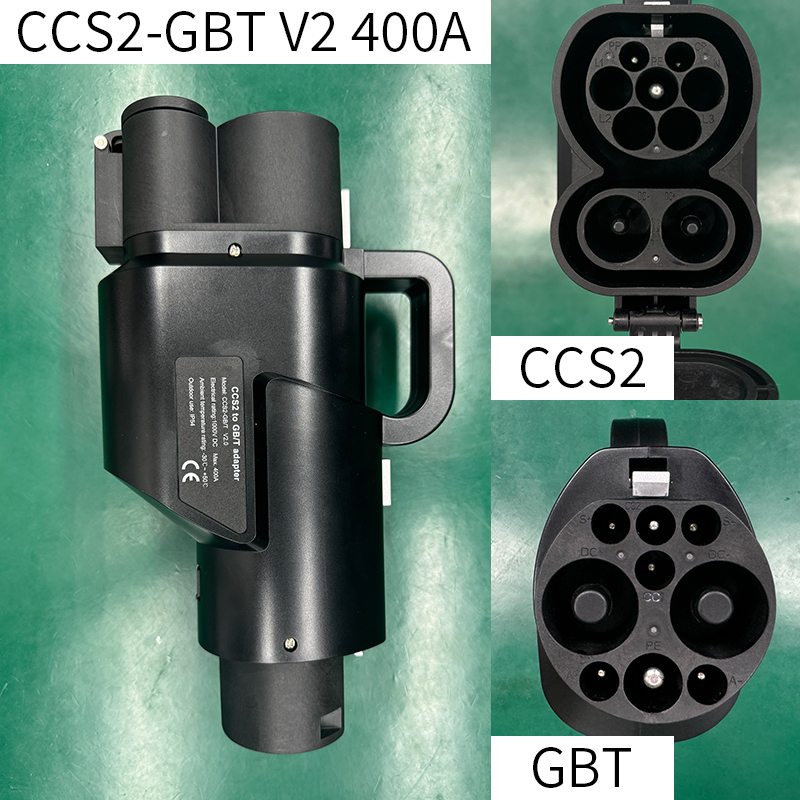

    CCS2 to GBT Adaptor

    1. CCS2 to GBT Seamless Charging: The CCS2 to GBT Type 2 adapter enables GBT-compliant electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs) to charge easily at CCS2 DC fast-charging stations (including destination chargers) and other CCS2-compatible charging networks. Enjoy broad compatibility without compromising performance.

    2. Ultra-High Power and Speed: Rated up to 400 kW and a maximum current of 400 A, this adapter enables ultra-fast charging, significantly reducing downtime. It's ideal for high-capacity EV batteries, allowing for fast and efficient charging anytime, anywhere.

    3. Rugged and Weather-Resistant: The adapter's durable design is built to perform flawlessly in extreme conditions, with an operating temperature range of -30°C to +50°C. Its IP54-rated design is dust- and splash-resistant, ensuring reliable operation in any environment.

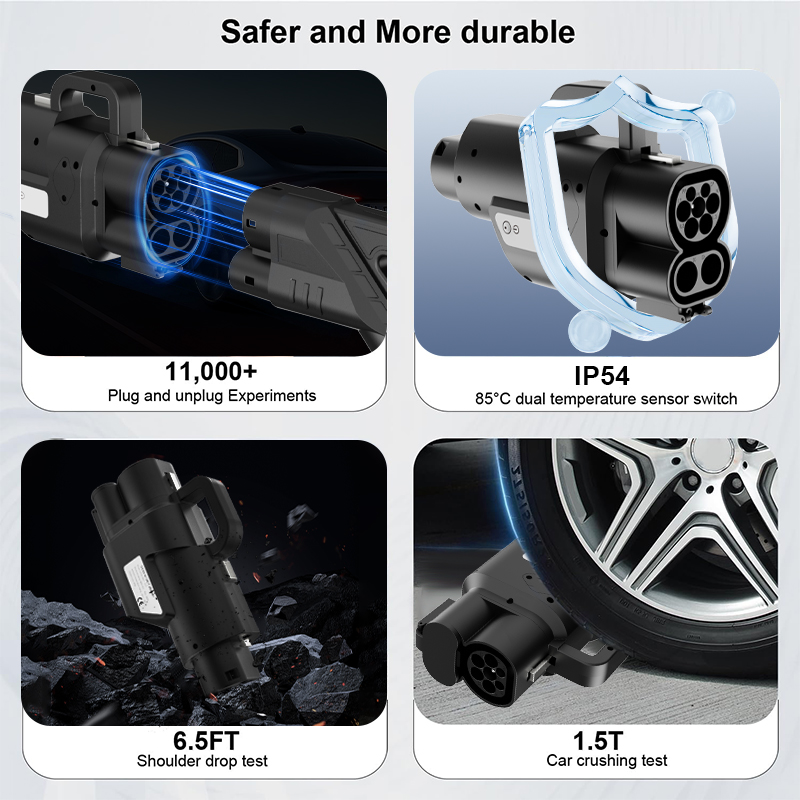

    4. Secure and Durable: A dual-end locking mechanism prevents accidental disconnection during charging. Designed to withstand over 10,000 plug-in/plug-out cycles, it's a reliable, long-term solution for frequent travel and commercial use.

    5. Compact and Portable: This adapter is lightweight and easily packs away for easy portability. Stow it in your trunk for ready access to your CCS2 charger, ensuring you always have a fully charged battery.
