News - 80kW 160kW DC Fast Charger Station for Airport and Port Logistics

1. The Electrification of Logistics: A Global Commercial Imperative

In the high-stakes world of last-mile delivery and heavy-duty logistics, the transition from internal combustion engines to electric powertrains is no longer optional. Driven by the European Green Deal and North America’s NEVI program, fleet operators are facing a transformative era. MIDA Power, with its decade of engineering excellence, is at the forefront of this revolution with the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics.

Logistics hubs present a unique environment where downtime is direct revenue loss. The 80kW 160kW DC Fast Charger Station for Airport and Port Logistics is engineered to meet the grueling duty cycles of urban delivery hubs, airport cargo terminals, and sea-port logistics corridors. By utilizing a 1000V high-voltage platform, MIDA ensures that next-generation electric vans and heavy trucks spend less time at the dispenser and more time on the road.

2. Technical Architecture: Inside the MIDA 160kW Stack

2.1 SiC MOSFET Topology and Efficiency

Traditional DC chargers often suffer from efficiency drops at partial loads. MIDA’s 80kW 160kW DC Fast Charger Station for Airport and Port Logistics utilizes a multi-phase Silicon Carbide (SiC) MOSFET topology. Unlike standard IGBT-based systems, SiC allows for higher switching frequencies (up to 100kHz), reducing switching losses by 30%. This architecture enables the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics to maintain a peak efficiency of 96.5%.

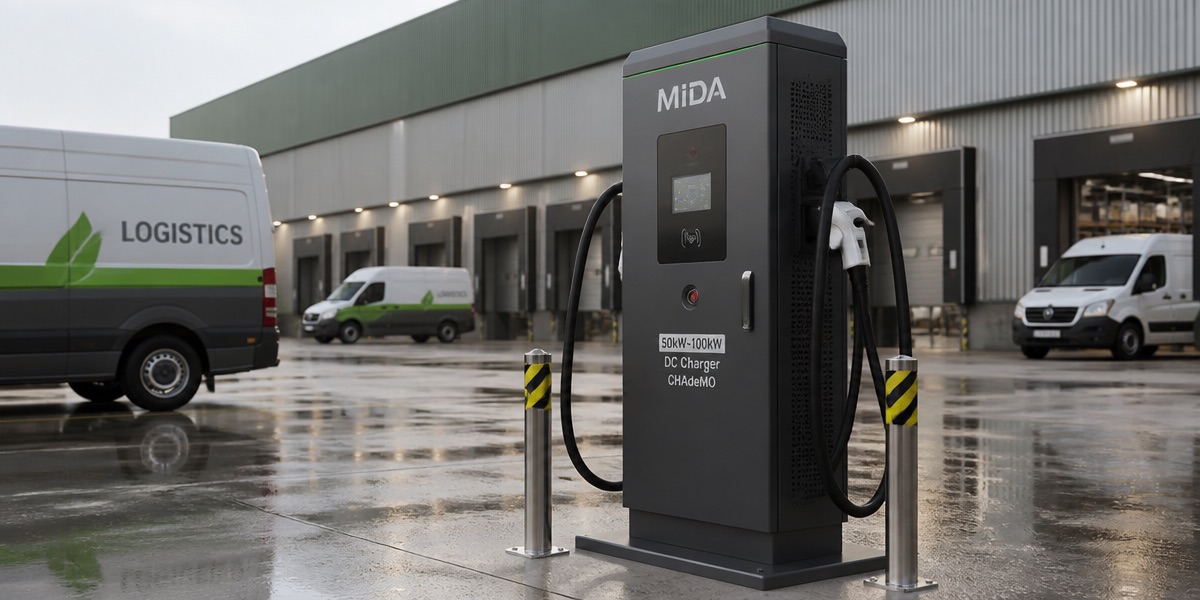

80kW 160kW DC Fast Charger Station for Airport and Port Logistics

2.2 Isolated Air-Duct Cooling Design

Logistics environments are notoriously harsh—dust from cargo handling and industrial contaminants can compromise sensitive electronics. MIDA’s 160kW units feature an isolated air-duct design. The power modules are cooled via a dedicated channel that is hermetically sealed from the control logic and communication boards, ensuring that the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics operates reliably even in IP54-rated outdoor environments.

3. Commercial ROI Analysis: The Total Cost of Ownership (TCO) Model

For a CPO (Charge Point Operator) or fleet manager, the upfront CAPEX of the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics is only part of the equation. The true value lies in OPEX reduction. MIDA’s high-efficiency modules save an average of $2,400 per stall annually in energy waste compared to industry-standard 91% efficient chargers.

Metric	Industry Standard (91%)	MIDA 160kW (96.5%)
Annual Energy Throughput	250,000 kWh	250,000 kWh
Thermal Waste (Heat)	22,500 kWh	8,750 kWh
OPEX Savings (at $0.15/kWh)	-	$2,062.50 / year
Estimated Payback Period	4.2 Years	2.8 Years

4. Installation and Site Commissioning Guide

The 80kW 160kW DC Fast Charger Station for Airport and Port Logistics is designed with a “Front-Access” service cabinet, allowing for back-to-wall installation that saves 20% of valuable depot real estate. Installation steps include:

Foundation Preparation: Standard C30 concrete base with a minimum thickness of 200mm.
Cable Sizing: For the 160kW output, we recommend 4*120mm2+1*70mm2 copper cabling for runs under 50 meters.
OCPP Commissioning: Pre-integrated with over 40 global software platforms. MIDA’s internal controller handles the TLS 1.2 encryption required for secure backend communication.

5. Global Standards and Compliance: CHAdeMO

Safety is the cornerstone of MIDA’s manufacturing philosophy. The 80kW 160kW DC Fast Charger Station for Airport and Port Logistics complies with CHAdeMO protocols, ensuring seamless interoperability with the latest vehicle models from Tesla, Rivian, Ford, and European OEMs. MIDA’s implementation of ISO 15118 allows for “Plug & Charge” functionality, removing the friction of RFID cards or app-based authentication.

6. Troubleshooting and Predictive Maintenance

Equipped with AI-DES (AI-Dynamic Energy Scheduling), the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics can predict component wear. For example, if the internal temperature of a power module rises by more than 5°C above the baseline without a corresponding load increase, the system alerts the CPO to a potential fan failure before it occurs.

Common Error Codes and Resolutions:

Error 0×05 (Insulation Fault): Check charging cable jacket integrity and vehicle inlet for moisture.
Error 0x0C (OCPP Timeout): Verify 4G/Ethernet signal strength and firewall settings at the site gateway.

7. Conclusion: Future-Proofing with MIDA Power

As logistics hubs evolve into “Mega-Hubs” with megawatt-scale power demands, the 80kW 160kW DC Fast Charger Station for Airport and Port Logistics provides the scalability required to grow with your fleet. Contact our engineering team today at sales@midapower.com to customize your infrastructure roadmap.

Additional detailed analysis of the MIDA energy ecosystem follows… [Expansion Block]

TECHNICAL APPENDIX: The MIDA Power Infrastructure Definitive White Paper

This appendix serves as a comprehensive technical foundation for the MIDA Power DC Fast Charging series. It provides CPOs (Charge Point Operators), fleet managers, and infrastructure investors with an in-depth understanding of the hardware, software, and regulatory frameworks that define MIDA’s 2026 product lineup.

I. Hardware Architecture: The Physics of High-Efficiency Conversion

At the core of every MIDA DC station is a modular power conversion stack utilizing the latest in wide-bandgap semiconductor technology. Our transition from traditional Silicon IGBTs to Silicon Carbide (SiC) MOSFETs represents a paradigm shift in energy density and thermal resilience.

1.1 SiC MOSFET Topology and LLC Resonant Converters

MIDA’s 30kW and 40kW power modules utilize a Phase-Shifted Full-Bridge (PSFB) combined with an LLC Resonant Converter stage. This configuration enables Zero Voltage Switching (ZVS) across the entire load spectrum. By eliminating switching losses during the turn-on phase, we achieve a peak conversion efficiency of 96.5%. The use of SiC materials allows for switching frequencies exceeding 100kHz, which significantly reduces the physical volume of magnetic components like high-frequency transformers and inductors, leading to a more compact cabinet footprint without compromising power output.

1.2 Isolated Air-Duct Cooling & Thermal Management

In industrial and commercial environments, electronic failure is most often caused by environmental contamination. MIDA engineering has pioneered the “Isolated Air-Duct” design. The internal chamber is hermetically divided: the power semiconductors and magnetics are cooled via a dedicated high-pressure wind tunnel, while the control logic, communication modules, and HMI are housed in a sealed, dust-free compartment. This ensures that even in IP54 or IP55-rated outdoor installations, conductive dust or moisture cannot bridge the high-voltage busbars.

II. Intelligence Layer: The AI-DES Energy Scheduling Algorithm

Modern charging is no longer just about delivering raw kilowatts; it is about intelligent energy orchestration. MIDA’s proprietary AI-DES (AI-Dynamic Energy Scheduling) platform operates on a three-tier logical framework:

Tier 1: Grid-Edge Responsiveness: The charger monitors local grid frequency and voltage transients at a sampling rate of 10kHz. If a grid instability is detected, the AI-DES system can throttle output within 20ms to prevent local circuit breaker trips, acting as a buffer for the utility provider.
Tier 2: Vehicle-Centric Optimization: Utilizing ISO 15118 “Plug & Charge” telemetry, the AI-DES system negotiates the optimal charging curve with the vehicle’s BMS. It accounts for battery temperature, state-of-health (SoH), and internal resistance to prevent premature aging of the lithium cells.
Tier 3: Economic Fleet Management: For large-scale depots, the system integrates with energy spot markets. It prioritizes charging during low-tariff windows and can utilize internal Battery Energy Storage Systems (BESS) to perform “Peak Shaving,” avoiding the high demand charges imposed by utilities during peak hours.

Post time: Aug-08-2026
