OCPP 2.0.1 ISO15118 240kW 300kW 360kW 420kW Ultra Charger Fast charging station

60kw~400kw Integrated DC Charger is a self-contained electric vehicle (EV) charging solution that combines multiple functions like the charging module, charging control, metering, and communication into a single unit, offering fast and efficient DC charging for commercial and public use.


  • Rate Power: 60kw ~400kw Integrated DC Charger
  • Input Voltage: 400V±15%
  • Input Voltage Type: TN-S(Three Phase Five Wire)
  • AC Grid Frequency: 45-65Hz
  • Output Voltage: 150V-1000V
  • Output Voltage Error: ≤0.5%
  • Output Current Error: When Output current≥30A:≤±1% When output current< 30A:≤±0.3A
  • Power Factor: ≥0.99
  • Leakage current: ≤10mA
  • Power Frequency Withstand Voltage: 2500VAC
  • Product Detail

    Product Tags

    240kW 300kW 400kW DC EV Charger

    DC 180kW 240KW 300kW 360kW Integrated DC EV Charging Station Features

    1. Urban Public Charging Station: This station can be deployed at public charging stations serving private cars, commuter vehicles, and buses, providing convenient charging options for different types of vehicles.

    2. Parking Lots and Shopping Malls: This station is ideal for installation in parking lots, such as shopping malls, providing electric vehicle owners with convenient charging while shopping or parking.

    3. Electricity Business Locations: This station can be deployed at electricity business locations, such as power service centers or charging hubs, providing charging options for electric vehicle owners in these locations.

    4. Intercity Highway Charging Station: This station is suitable for installation along intercity highways, providing fast charging capabilities for electric vehicles traveling long distances.

    Limited Space Deployment: This station is particularly suitable for locations with limited space, allowing for rapid deployment and efficient use of available space.

    In summary, the 120kW/180kW/240kW/360kW integrated DC charger for electric vehicles is suitable for a variety of charging locations, including urban public charging stations, parking lots, shopping malls, intercity highways, and power business premises. It is adaptable to different types of vehicles and is particularly suitable for rapid deployment in limited spaces. It is an efficient solution for achieving fast DC charging in various environments.

    5

    120kW Integrated DC Charger Station

    3

    Floor Mounting 180KW Integrated DC Charger

    1

    EV Charger 240kW Integrated DC Charger

    2

    360kw Integrated DC Charger Station

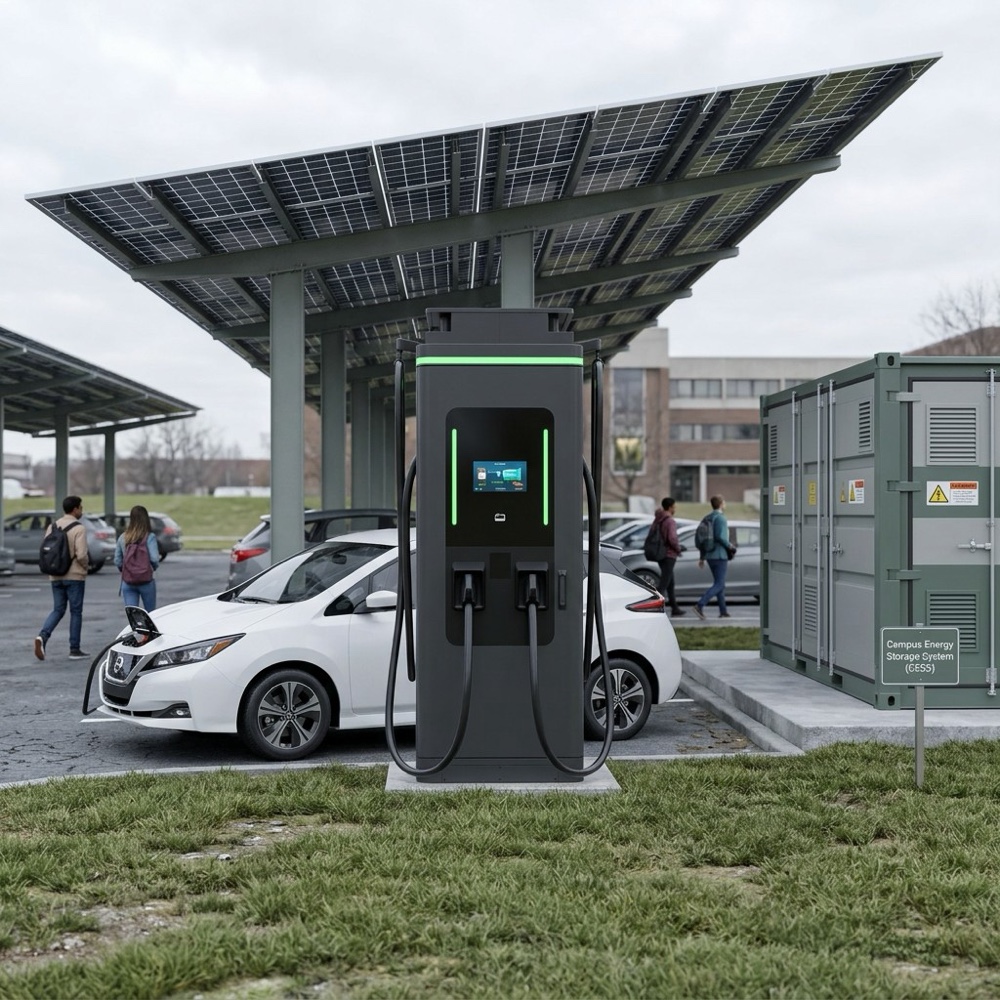

    MIDA-300kW-NACS--Commercial

    Guaranteed Security

    • 300kw 350kw 400kw Integrated DC Charger

      EV Integrated DC charger provides a DC charging solution for electric vehicles. This product integrates charging modules, charging control, energy meter, communication, and other functions with the CCS2 connector support, providing flexible power output and charging services for passenger cars and mining trucks.

      • Flexible configurations 150kw 240kw 300kw 350kw 400kw DC Charging Station
      • Supporting CCS, CHAdeMO, GB/T, and Type 2 AC charging
      • Ethernet, Wi-Fi, 4G connection
      • OCPP 1.6J & OCPP 2.0
      • Smart charging supports dynamic load balancing

    300KW 350KW Fast Charger Station

    • Rapid Charger 300 kW Ultra Charging Station ,HPC 300kw EV Charging Station DC Fast Charger Piles.150kW~300 kW Ultra Fast Charging Station 300 kW EV charger
    • 300KW 350KW DC Fast Charging Station DC electric vehicle charger is ideal for commercial and public charging stations, offering rapid charging capabilities that significantly reduce waiting times for EV drivers, making it a top choice for high-traffic locations.
    • CCS2 300kW DC Charging Station All-in-One EV Charger Piles.CCS Fast Charger 300 kW EV Charging Station ,HPC 300kw EV Charging Station DC Fast Charger Piles. 150kW 160kw 300kw 350kw 400 kW Ultra Fast Charging Station.DC fast-charging stations with a charging capacity of up to 300 kW

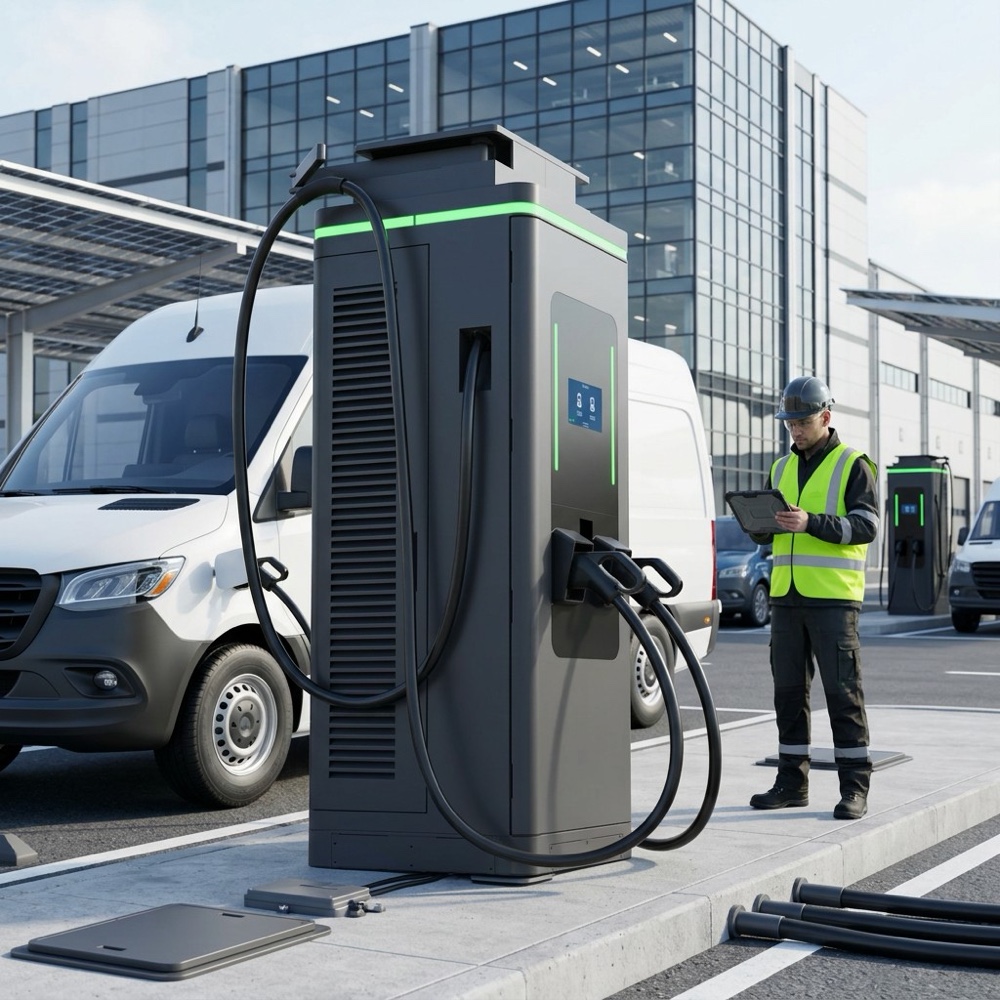

    MIDA-180kW-GBT-DC-Fast-Charging-Station-Public-Hub

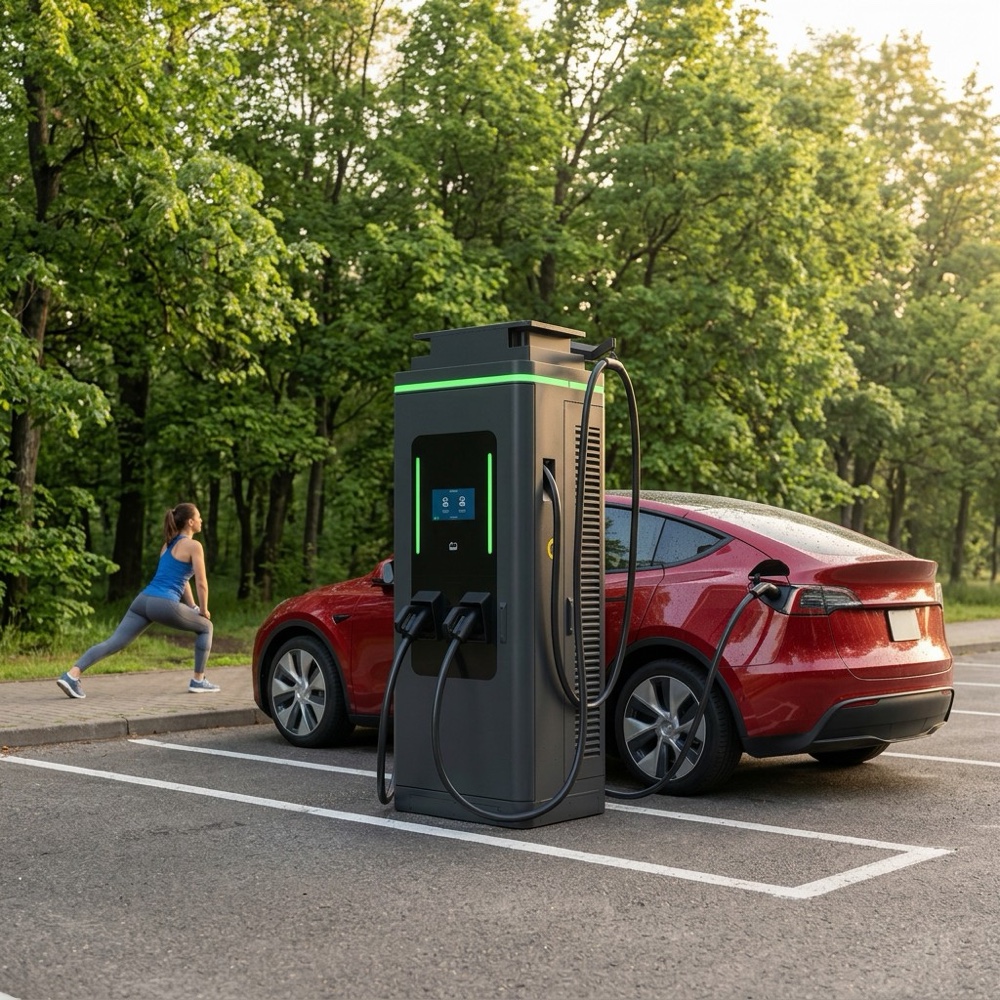

    MIDA-300kW-NACS-EV-Charging-Pile-

    180kw~400kw DC Fast Charger

    • Multi-standard Charging

      • Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
      • Triple outlet ports, two DC cables, one AC cable, and one 3.6kW schuko output
      • 180kw 240kw 300kw 320kw 400kw DC Fast Charger Station.
      • CCS 2 300KW 360KW 400KW 480KW DC Fast Charging Station Station

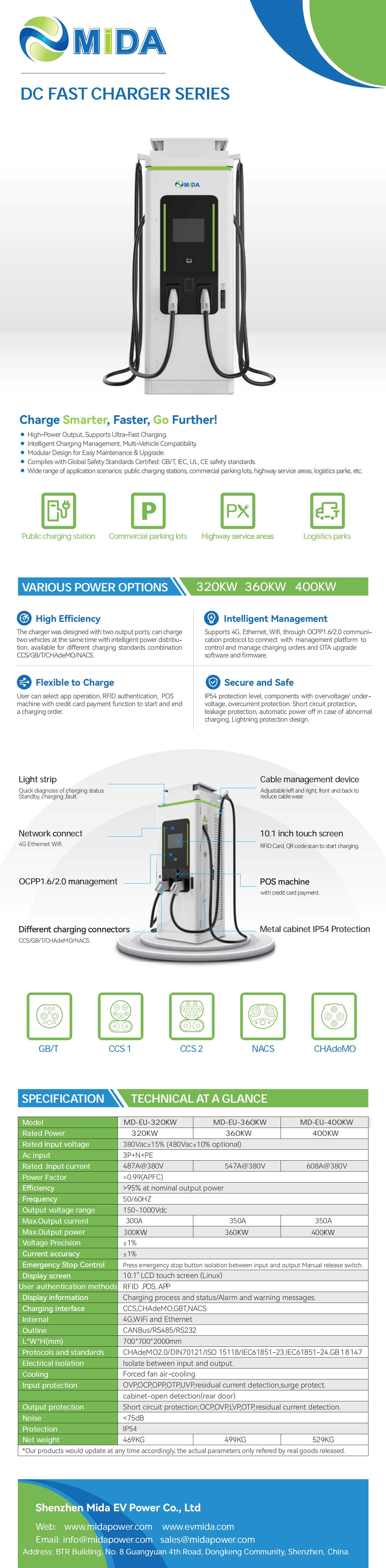

    300-360- 400KW MIDA DC CHARGER SPEC_01
