Rapid EV Charger 150kw 180kw 240kw NACS CHAdeMO Fast DC Charging Station

PSE CHAdeMO protocol 2.0.1 150kw 180kw 240kw CHAdeMO Charger Piles DC EV Charging Station CHAdeMO Connector.CHAdeMO is a fast direct-current (DC) electric vehicle charging standard created in Japan, mainly used by older Nissan Leafs, Mitsubishi Outlanders, and select Asian models. It is gradually being phased out globally in favor of the Combined Charging System (CCS) and NACS standards.

Item: CHAdeMO NACS Charger

Rate Power: 150kw 180kw 240kw

Input voltage : 150v-450v AC

Wide temperature : -30ºC to +65ºC

AC Grid Frequency: 40-65Hz

Output Voltage: 150V-1000V

protocol compatible: OCPP1.6

Output current: 125A-500A

Power Factor: ≥0.99

Leakage current: ≤10mA

Power Frequency Withstand Voltage: 2500VAC

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

Japan EV Quick Charger 30kw 50kw DC Charging Station

About 90kW and 150kW CHAdeMO Fast Charging Stations
The 150kW 180kw 240kw NACS ChadeMO all-in-one DC fast charger is suitable for electric vehicles, trucks, and buses. 50kW Chademo Fast Charger One of the modern fast chargers, designed to charge electric vehicles faster, CHAdeMO fast charging can supply up to 50kW. It aims to provide the fastest and safest electric vehicle charging solution not only for EV drivers but also for companies looking to offer charging services. Read this article for detailed information on the features, operation, and usage of the 50kW Chademo fast charger.

CHAdeMO Quick Charger for EV 90kW/150kW ev charging stations for electric vehicles in Japan.

The Chademo 150kW 180kw 240kw fast charger is easy and convenient for EV drivers to use, and the charging process is simple. Users can start and stop charging with a single click, making it extremely convenient. Furthermore, companies using this charger are provided with the ability to remotely manage their charging stations, which is useful not only for improving service quality but also from a consumer-oriented perspective.

CHAdeMO is a fast direct-current (DC) electric vehicle charging standard created in Japan, mainly used by older Nissan Leafs, Mitsubishi Outlanders, and select Asian models. It is gradually being phased out globally in favor of the Combined Charging System (CCS) and NACS standards.

CHAdeMO is a fast direct current (DC) charging standard originating from Japan, primarily used for older models like the Nissan Leaf and Mitsubishi Outlander, as well as certain Asian vehicles. Currently, CHAdeMO is being phased out globally in favor of the Combined Charging System (CCS) and NACS standards.

What is the function of a CHAdeMO charger?

It is a connector specifically designed for high-power DC charging, which is why you won't find it on the wall-mounted chargers commonly seen at home. The batteries in electric vehicles operate on DC power, meaning the charger can directly supply high-power current to the battery without requiring an onboard charger to convert AC to DC.

CHAdeMO is one of the earliest connector types, jointly developed by Japanese industries and automakers in the early 21st century, thus undergoing thorough practical testing. As a result, it is primarily used in Japanese models such as the Nissan Leaf, Toyota Prius Plug-In Hybrid, Mitsubishi Outlander PHEV, and Lexus UX 300e. Occasionally, some electric vehicles without a CHAdeMO interface can also be utilized with adapters, such as the Tesla Model S and Model X.

Key Features: Power Output: Typically delivers 150 kW to 140 kW at public charging stations, with subsequent technical specifications supporting up to 400 kW. Wired Plug: All public CHAdeMO charging stations provide connecting cables and large locking plugs; no need to bring your own cable. Bidirectional Power Supply: Enables efficient Vehicle-to-Grid (V2G) and Vehicle-to-Home (V2H) energy transfer.

Compatibility and Status: Supported models: Nissan Leaf, Mitsubishi Outlander PHEV, Lexus UX 300e. Newer electric vehicles use CCS or NACS interfaces. Incompatibility: CHAdeMO plugs cannot be directly connected to CCS or North American Charging Standard (NACS) interfaces and require a dedicated, rare adapter.

High Efficiency and Energy Conservation

Ultra-wide operating temperature

Ultra-low standby power consumption

Wide output constant power range

Guaranteed Security

Japan 90kw 100kw 150kw CHAdeMO Rapid DC EV Charging Station

Quick EV Charger 90kw 100kw 150kw CHAdeMO DC Charging Station

Simultaneously charging up to 3 EVs
- Flexible configurations 90kw 100kw 150kw 180kw 240kw Japanese DC Charging Station
- Supporting CCS, NACS ,CHAdeMO, GB/T Charging Connector
- Ethernet, Wi-Fi, 4G connection
- OCPP 1.6J & OCPP 2.0
- Smart charging supports dynamic load balancing

Easy to Use

Key Features of the 150kW 180kw 240kw Chademo Fast Charger
Other charging solutions, like the 150kW 180kw 240kw Chademo fast charger, are specifically designed for EVs. The capabilities of these sophisticated features are already integrated into this charger (symbol image) and can be used depending on the scaling during the concept phase. One of the most obvious features here is a high-precision power control system that prevents overvoltage and overheating. This function is utilized even during charging. The charger also provides advanced active cooling to maintain an optimal temperature, protecting the EV battery and the charger itself in a wide range of weather conditions.

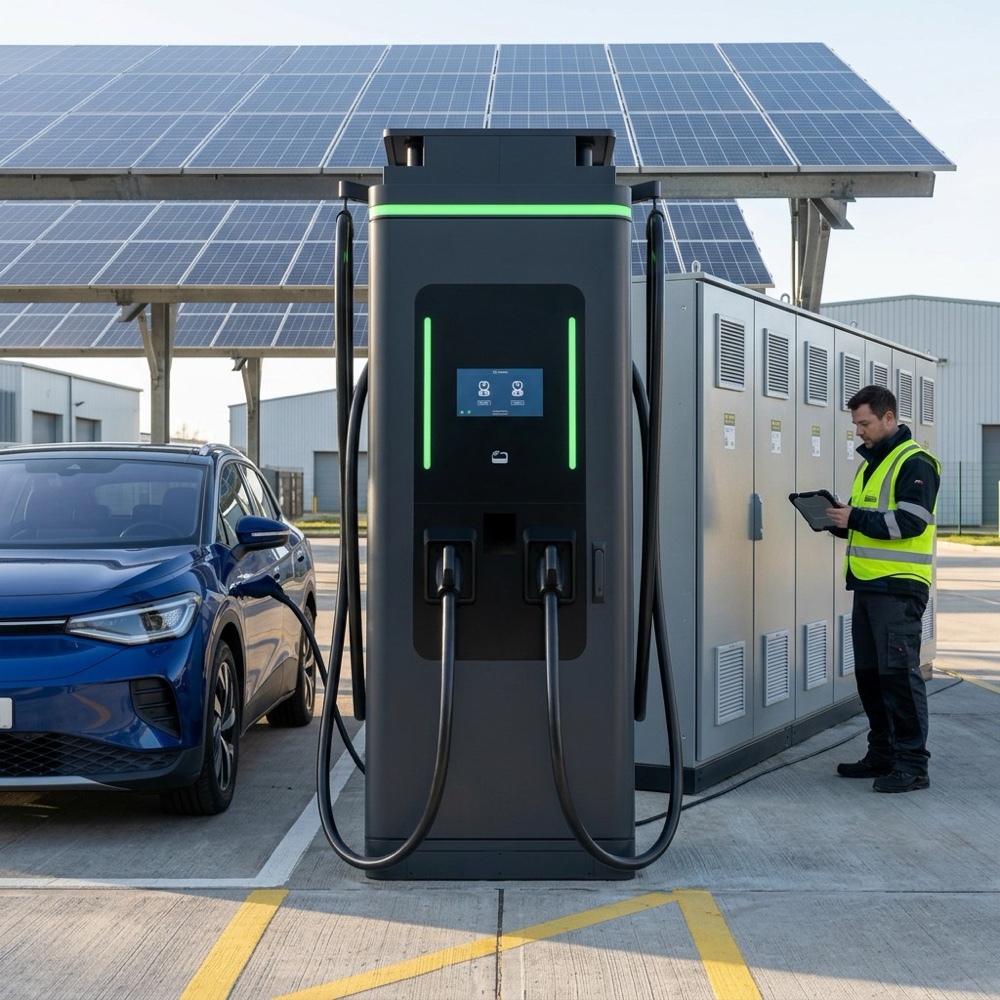

Japan 150kW 180kw 240kw CHAdeMo NACS DC Charging Station

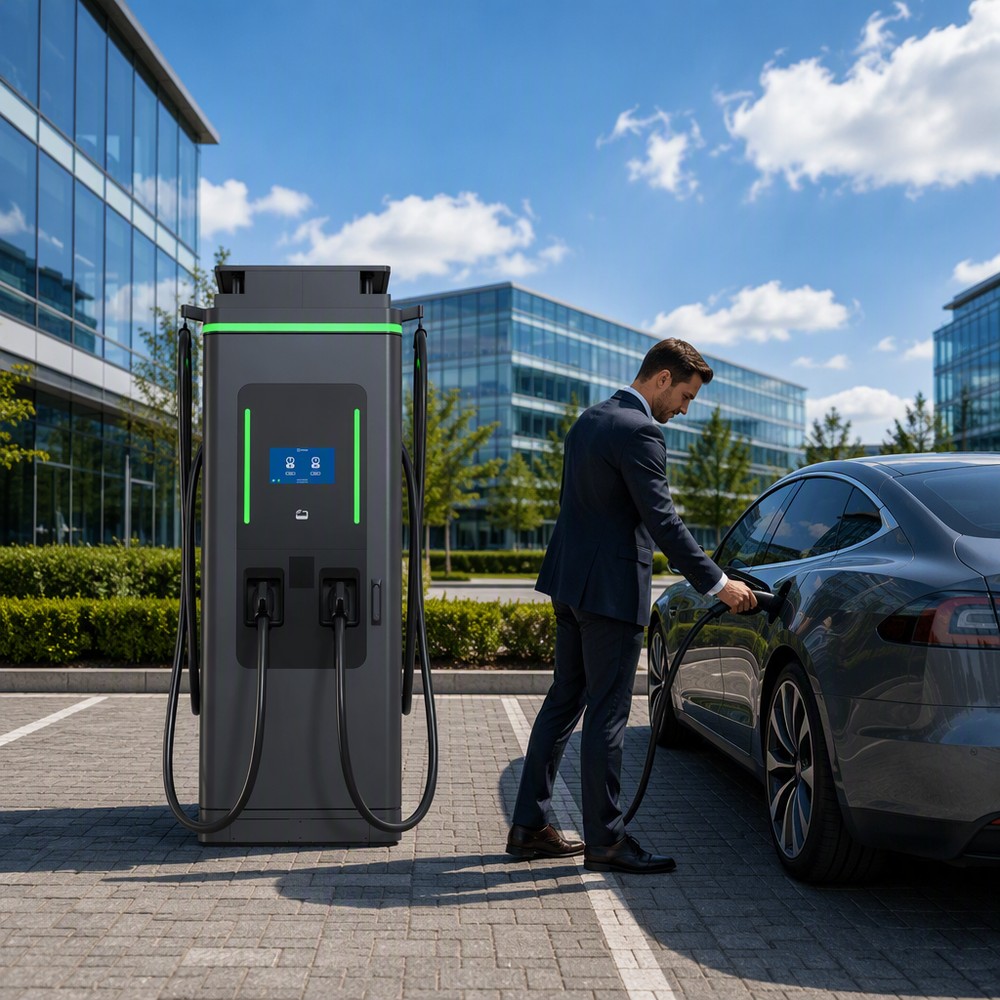

150kW 180kw 240kw Chademo Fast Charger Station
Clearly, the 150kW 180kw 240kw Chademo fast charger Lockheed SC, shown in red below, is one of the key features of its electric vehicle, operating at electric speed. This charger can charge the battery to 80% in just 30 minutes, making it far more convenient than Level 1 or Level 2 chargers. Furthermore, it is installed in many electric vehicles that use the Chademo standard, adopted by many manufacturers, making charging spots more accessible for many EV drivers.

General Specifications

Item		DC 150kW	DC 240kW
Input	Input Voltage	420V ±15% AC
	Input Voltage Type	TN-S (Three Phase Five Wire)
	Working Frequency	45~65Hz
	Power Factor	≥0.99
	Efficiency	≥94%
Output	Rated Voltage	DC - CHAdeMO 500Vdc; CCS 1000Vdc; GBT 1000Vdc; AC - Type-2 400V; GBT 400V ,Tesla NACS DC 1000V
	Max. Output Current	DC - CHAdeMO 125A; CCS 200A; GBT 250A;	AC - Type-2 63A; GBT 32A
Interface	Display	8'' LCD Touchscreen
	Language	Chinese, English, French, German, Spanish, Russian, etc.
	Payment	Mobile APP/RFID/POS
Communication	Network Connection	4G(GSM or CDMA)/Ethernet
	Communication Protocols	OCPP1.6J or OCPP2.0
Working Environment	Working Temperature	-30°C ~ +55°C
	Storage Temperature	-35°C ~ +55°C
	Operating Humidity	≤95% Non-Condensing
	Protection	IP54
	Acoustic Noise	<60dB
	Cooling Method	Forced Air-Cooling
Mechanical	Dimension(W x D x H)	7001900650mm
	No. of Charging Cable	Single	Dual
	Cable Length	5m or 7m
Regulation	Certificate	ETL /Energy Star/FCC certificate UL223-1 ,UL2231-1-2,UL 2202,CSA,C22.2

Which electric vehicles use the CHAdeMO interface?

Electric vehicles using the CHAdeMO fast charging standard are primarily Japanese models and early Asian or European models, most notably the Nissan Leaf, Mitsubishi Outlander PHEV, and Mitsubishi i-MiEV.

Main CHAdeMO Models

Nissan Leaf: The most common all-electric vehicle globally using the CHAdeMO interface.

Nissan e-NV200: An electric van using the Leaf's powertrain.

Mitsubishi Outlander PHEV: One of the few plug-in hybrid vehicles equipped with DC fast charging.

Mitsubishi i-MiEV (and its siblings that meet this standard, such as the Citroën C-Zero and Peugeot iOn).

Kia Soul EV (first generation, as of 2019).

Lexus UX 300e and some regional models, such as the Subaru Solterra (Japanese market).

Adapter Compatibility

Tesla Model S and Model X: Older Tesla models can use the Tesla-specific CHAdeMO adapter for traditional fast charging, but supply is limited.

What is a CHAdeMO Charging Station?

CHAdeMO is an electric vehicle connector that provides fast charging and is popular in fast charging stations. While a typical home charging station provides 7kW of power, a CHAdeMO charging station offers significantly higher power, up to 400kW.

On a Nissan Leaf, the CHAdeMO connector can charge from 20% to 80% in just 60 minutes. This is ideal for fast charging on the go and perfect for long trips.

The 50kW Chademo fast charger incorporates communication capabilities that enable integrated communication between the charger, EV, and grid. This optimizes the charging process for all parties involved while preventing peak loads on the grid. Furthermore, this charger collects extensive data and generates charging activity reports showing where, when, and how much money operators spent on charging.

Check out the operation and safety features of the 150kW 180kw 240kw Chademo fast charger!

Safe charging remains key to EV charging, and this 150kW 180kw 240kw Chademo fast charger incorporates several measures to ensure this. It features overcurrent protection, and its eye-catching ground fault detection aims to protect both EV drivers and charging infrastructure. Furthermore, it comes with a security lock system, preventing unauthorized access to your vehicle and protecting it from theft.

Using the 50kW Chademo fast charger is very simple. First, the driver needs to ensure their EV is Chademo compatible. After that, simply park at a normal charging spot and plug in the charger. Follow the on-screen instructions (or, in the case of many Teslas, follow the prompts displayed on the in-car command unit) to proceed through each step of charging and plugging/unplugging.

ChadeMo 150kW 180kw 240kw Fast Charger Service Quality and Usage

The market-leading 150kW 180kw 240kw Chademo fast charger provides EV drivers with superior charging performance and reliability. This allows companies using this charging module to convey a message not only of their commitment to environmental protection, but also of their use of cutting-edge, advanced technology, appealing to a wider audience. Furthermore, this charger is used in a wide range of applications, from public charging infrastructure to electric vehicle fleets and emergency backup power sources.

In short, the 150kW 180kw 240kw Chademo fast charger clearly demonstrates its efficiency improvements and safety, without being hidden by clever design. In addition, its plug-and-play simplicity and fast charging times make it one of the leading home EV chargers in business environments. It is highly valued wherever high-quality service is desired. The 150kW 180kw 240kw Chademo fast charger will forever transform electric vehicle charging infrastructure. It will make charging electric vehicles faster and easier.
