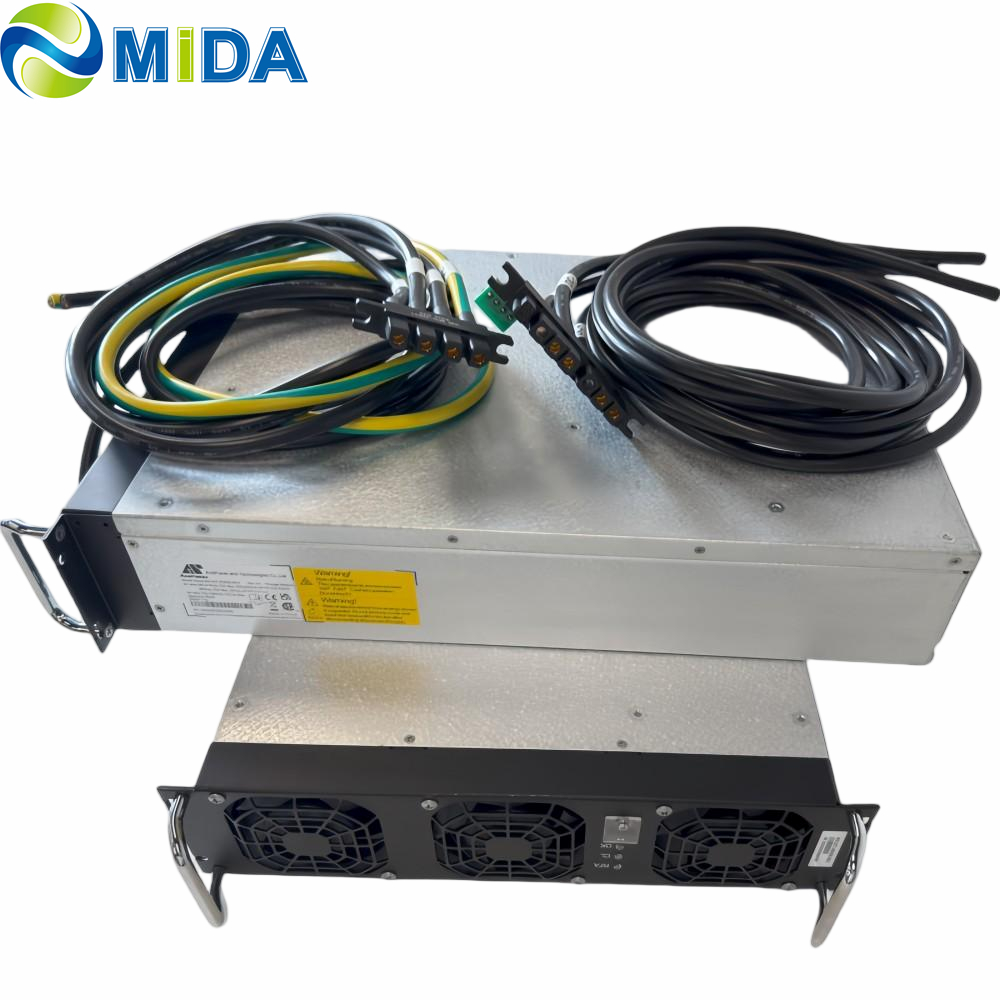

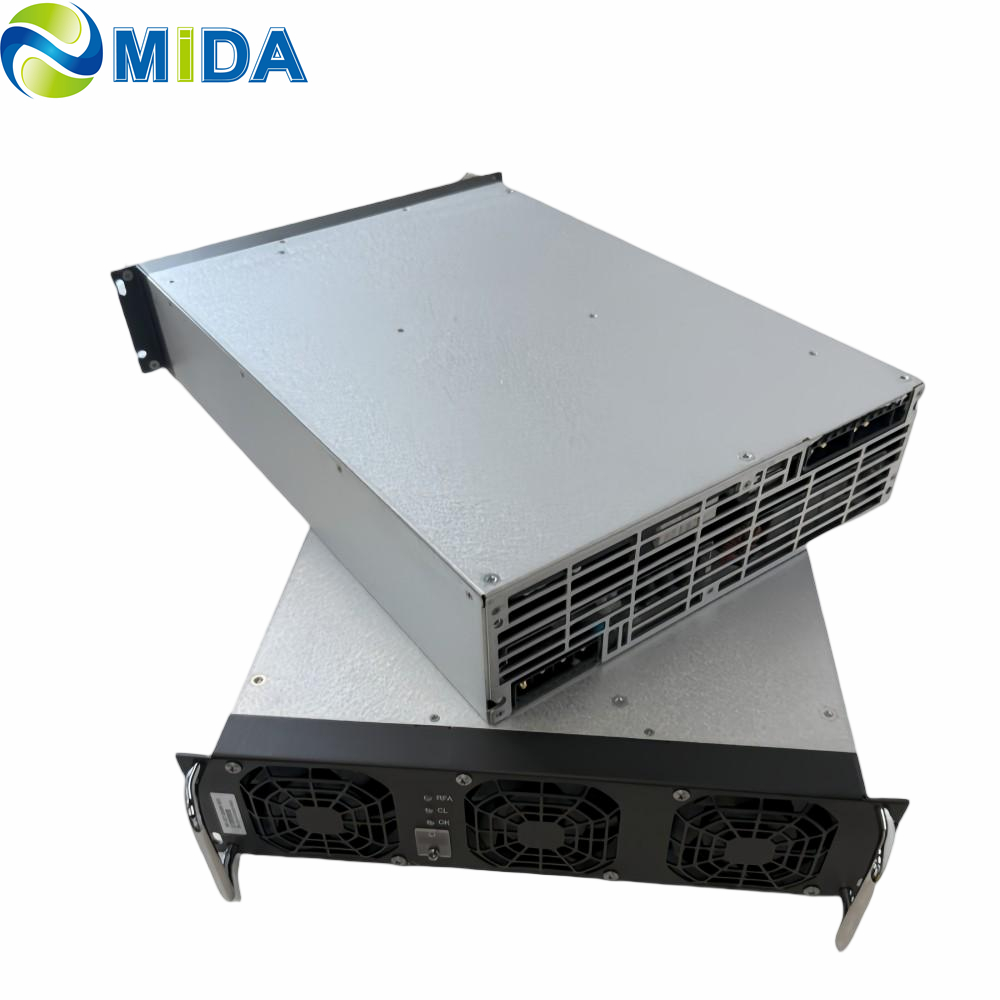

60kW 80kW EV Charging Module DC Power Supply Rectifier

UR100060E and UR100080E 60kw and 80kW Power Module AC DC Charger Module , 60kW EV Charging module is a high performance charging module for 60kw 120kw 180kw 240kw 360kW 400kW DC Charger Station.80 kW Bidirectional AC DC Power Module For DC Micro grid And Energy Storage System

Model No.: UR100060E and UR100080E

Input Voltage: 300VDC~1000VDC

Rated Output Power: 60kW

Output Voltage Range: 150V~1500V

Peak Efficiency: ≥ 96%

Power Factor: ≥0.99

Current Regulation Accuracy: ≤±1%

Communication Protocol: CAN

Operating Temperature: －40℃～＋75℃

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

60kw 80kW EV Charger Power Module for Electric Vehicles

The 60kW EV charging module is a powerful and compact rectifier unit, typically employing liquid cooling to convert three-phase AC power into high-voltage DC for rapid charging. By paralleling multiple modules, it forms the core of DC fast charging stations, enabling scalability. It offers adjustable output voltages (e.g., 150V-1000V) and integrates features such as overvoltage/overcurrent protection and self-diagnosis to ensure reliability in public or fleet charging applications.
The 80kW charging module is a high-power component of an electric vehicle (EV) DC fast charger, which can provide up to 80 kW of power. It typically has high efficiency (about 96%), wide voltage output (200-1000VDC), and compatibility with CCS/CHAdeMO/Type 2 standards. It can quickly charge electric vehicles and sometimes also perform AC charging simultaneously. This modular design facilitates upgrading or maintenance by replacing modules and can be used in various places, such as shopping centers or workplaces.

Key Features and Functions for 60kW 80kW EV Charger Module:

Power conversion: Converts three-phase AC input (e.g., 380V) into a wide-range DC output (e.g., 200V-1000V), suitable for various electric vehicle battery chemistries.

Scalability: Multiple modules can be installed in parallel within a single power cabinet, enabling flexible total power (e.g., 60kW, 120kW, 180kW,240kw 320kw 400kw ) and more convenient maintenance (supporting hot-swapping).

Cooling: Liquid cooling is commonly used in high-power applications to achieve efficient heat dissipation.
Protection: Built-in safety features (overvoltage, overcurrent, overtemperature, short-circuit protection) and self-test function (POST).
High efficiency: The peak efficiency can exceed 96.5%, minimizing energy loss to the greatest extent.
Standard Compliance: Supports mainstream charging protocols such as CCS, CHAdeMO, and GB/T, and has obtained TUV CE, UL, and EMC Class B certifications.

Application for 60kW 80kW EV Charging Module:
DC Fast Charging Station: Internal power source for public and private electric vehicle charging stations.
Electric buses and fleets: Used for charging stations of large electric buses and commercial vehicles.

Portable charger: can be integrated into mobile or portable charging devices.

ADVANCED TECHNOLOGY

This 60kW EV Charging Module support DC and DC dual input mode, which combines battery charging by the power grid and vehicle charging by battery. At the same time, it meets the size requirements of three unified module of State Grid.

High Efficiency and Energy Conservation

Wide output constant power range

Ultra-low standby power consumption

Ultra-wide operating temperature

20KW EV Charger Module

20KW EV Charger Module ( two-input)

30KW EV Charger Module

40KW EV Charger Module

ULTRA WIDE OUTPUT VOLTAGE RANGE
COMPATIBLE WITH EVERY EV BATTERY CAPACITY REQUIREMENTS

50-1000V ultra wide output range, meeting car types in the marketand adapt to high voltage EVs in future.

● UR100060A 60kW EV Power Module Compatible with the existing 150V-1000V platform and provides full power charging for future development above 1000V which is able to avoid investment on high voltage EV charger upgrade construction.

● UR100060A 60kW Charging Module Support CCS1, CCS2, CHAdeMO, GB/T and energy storage system.

● UR100060A 60kW power module Meet the future trend of high-voltage charging of electric vehicles, compatible with various charging applications and car types.

INTELLIGENT CONTROL FOR SAFE AND
RELIABLE CHARGING MODULE

Specifications

UR100060A 60kW Charging Module
Model No.		UR100060A 60kW
AC Input	Input Rating	260Vac ～ 530Vac,three phase + Protective Earth
	AC Input Connection	3L + PE
	Input Frequency	50/60±5Hz
	Input Power Factor	≥0.99
	Input Overvoltage Protection	530±10Vac
	Input Undervoltage Protection	260±10Vac
DC Output	Rated Output Power	30kW
	Output Voltage Range	300Vdc ~ 1000Vdc
	Output Current Range	0.5-67A
	Output Constant Power Range	When output voltage is 150-1000Vdc, constant 30kW will output
	Peak Efficiency	≥ 96%
	Soft Start Time	3-8s
	Short Circuit Protection	Self-rollback protection
	Voltage Regulation Accuracy	≤±0.5%
	THD	≤5%
	Current Regulation Accuracy	≤±1%
	Current Sharing Imbalance	≤±5%
Operation Environment	Operating Temperature (°C)	-40˚C ~ +75˚C, derating from 55˚C
	Humidity (%)	≤95% RH, non-condensing
	Altitude (m)	≤2000m, derating above 2000m
	Cooling method	Fan cooling
Mechanical	Standby Power Consumption	<10W
	Communication Protocol	CAN
	Address Setting	Digital screen display, keys operation
	Module Dimension	46021884mm (LWH)
	Weight (kg)	≤ 13Kg
Protection	Input Protection	OVP, OCP, OPP, OTP, UVP, Surge protection
	Output Protection	SCP, OVP, OCP, OTP, UVP
	Electrical Insulation	Insulated DC output and AC input
	MTBF	500 000 hours
Regulation	Certificate	UL2202, IEC61851-1, IEC61851-23, IEC61851-21-2 Class B
Regulation	Safety	CE, TUV

Core features

The UR100060A 60kW AC DC charger module is the inner power module for DC charging stations (piles), and convert AC and DC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as UR100060A 60kW 150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

The UR100060A 60kW AC DC Bidirectional charger module UR100060A 60kW is equipped with a POST (power on self-test) function, AC or DC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

UR100030-VPFC 30kw Charging Module for EV Charger Station.

UBR85035-DD V2G EV Charging Module
UBR100030 V2G EV Charger Module

UR100040-DD 40kW DC Charging Module DC Input Wide Range Constant Power Module.
UR100030-DD Power Module 30kW DC Charging Station.
UR100040-LQ 40kW Liquid Cooling Charging Module for 400kw 480kw 600KW DC Charging Station.
UR100060-LQ 60kW Liquid Cooling Power Module for 480kw 600kw 720kw Charger Station.
UR100030SW-AD 30kW Charging Module for 240kw 300kw Energy Storage Charging Station.
UR100020SW-AD High Power 20kW Charging Module High Reliability 20kW Power Modules Supplier.
UR100040-IP65 40kw AC DC Charging Module for 120kw 180kw 240kw Fast DC Charging Station.
UR100030-IP65 30kW 1000V DC Charging module for 60kW 90kW 120kW Rapid Charger Station.
UR100040-SW 40kW EV Charging Module 150Vdc-1000Vdc, 40kW Power Module.
UR100030-SW 30kW EV Charging Power Module for 150kw Level 3 Charger Station.
UR100020-SW 20kW Super Wide Constant Power Charging Module.

Advantages

Multiple Options

High power as UR100040SW-SiC 40kW Bidirectional Charging Module
Output voltage up to 1000V

High Reliability

Overall temperature monitoring
Defenses of moisture, salt spray and fungus
MTBF > 100,000 hours

Secure and Safe

Wide input voltage range 260~530V AC
Wide working temperature range -30°C~+50°C

Low Energy Consumption

Unique sleep mode, less than 2W power
High conversion efficiency up to 96%
Intelligent parallel mode, working with the best efficiency

Applications

1,The 40kw AC DC charger modules UR100040SW-SiC 40kW power module can be used on DC fast charging stations for EVs and E-buses.

2,the UR100040SW-SiC 40kW AC DC charger module is equipped with input overvoltage protection, undervoltage alarming, output overcurrent and short circuit protection functions. The charger modules can be connected in a parallel system, allowing for a hot swapping and easier maintenance. This also ensures the system applicability and reliability.
3,The Bidirectional charger module UR100030SW 30kW is the inner power module for DC charging stations (piles), and convert AC energy into DC in order to charge vehicles. The charger module takes a 3-phase current input and then outputs the DC voltage as 200VDC-500VDC/300VDC-750VDC/150VDC-1000VDC, with an adjustable DC output to meet a variety of battery pack requirements.

4,The UR100040SW-SiC 40kW charger module is equipped with a POST (power on self-test) function, AC input over/under voltage protection, output over voltage protection, over-temperature protection and other features. Users can connect multiple charger modules in a parallel manner to one power supply cabinet, and we guarantee that our connect multiple EV chargers are highly reliable, applicable, efficient, and require very little maintenance.

5,1000V 40kW AC DC EV Charger Power Module UR100040SW-SiC 40kW for 120kW EV Fast Charger Station.40kw charging module 1000v emc class b rectifier ev charger power module
