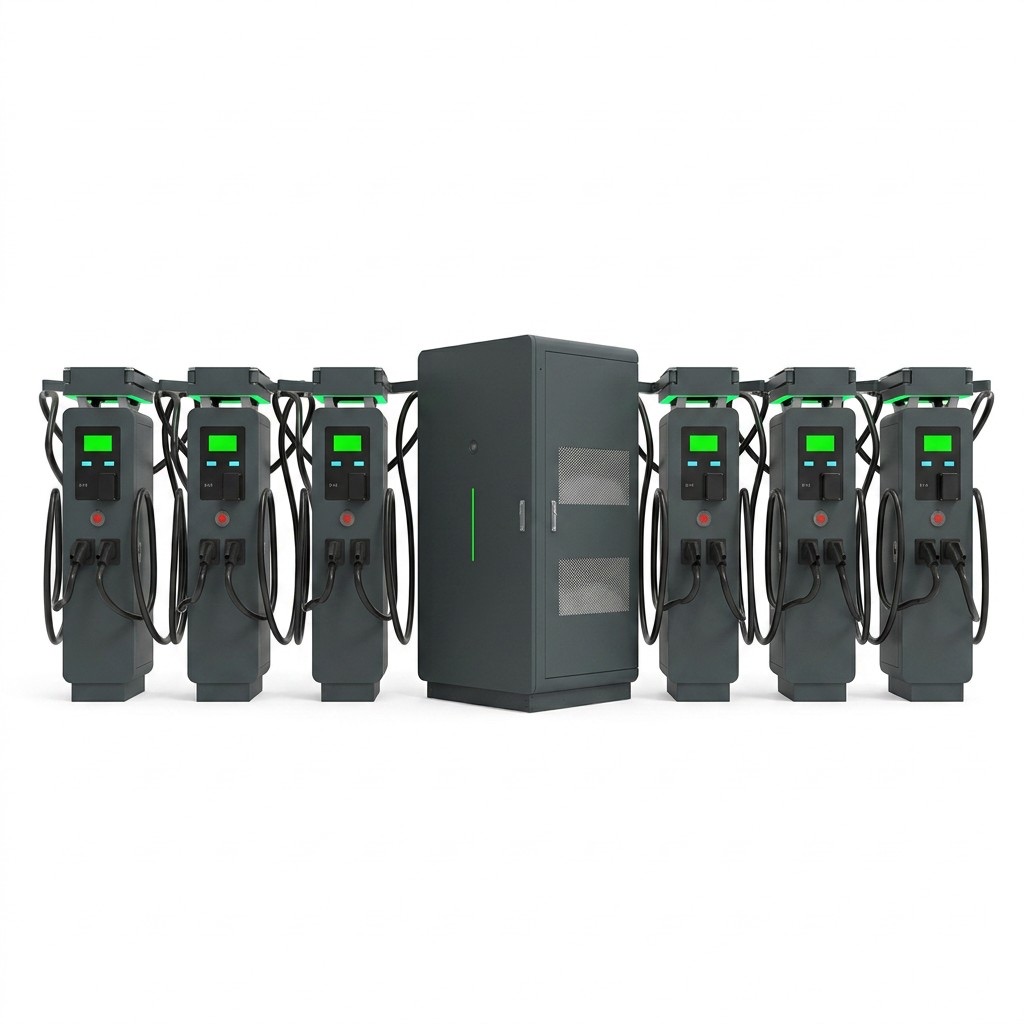

DC Split EV Charger 600kW 720kW 800kW Dispenser DC Charging Station Stack

600Kw 720kw 800kW Split EV Charging Station A super-fast, high-power DC charging system typically employs liquid cooling, a modular system architecture, and dynamic load balancing technology, capable of simultaneously charging multiple high-voltage vehicles.600kW 720kw 800kW Dispenser DC Charger Split Flexible Charging Stack CCS2 GB/T Split DC EV Fast Charging Station Charger for electric vehicle Public Charging Station,DC Split Charging Systems Commercial Electric Vehicle Charging Stations

Rate Power: 600kw 800kw DC Charging Station

Input Voltage: 400V±15%

Input Voltage Type: TN-S(Three Phase Five Wire)

AC Grid Frequency: 45-65Hz

Output Voltage: DC 200V-1000V

Output Voltage Error: ≤0.5％

Output Current Error: When Output current≥30A:≤±1％ When output current＜ 30A:≤±0.3A

Power Factor: ≥0.99

Leakage current: ≤10mA

Power Frequency Withstand Voltage: 2500VAC

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

High-Power Charging: MIDA 600kW 720kW 800kW Split-Type EV Charger Ultra-Fast Charging Systems

600KW, 720KW, 800KW electric vehicle charging piles, featuring dynamic power allocation technology. Specifically designed for commercial EV charging parking lots, retail venues, and other application scenarios, with an efficiency of up to 96.5%.

The company showcased a comprehensive product portfolio, including distributed charging systems with 600kW, 720kW, and 800kW capacities, as well as standalone DC chargers (60–180kW DC chargers and 240–400kW EV charging stations). Among these, the 800kW distributed EV charging system stands out as a highlight. Certified with CE and CB standards, this system features an 800kW power unit, supports dual cabinet expansion, and achieves a maximum capacity of 1.6MW. It is compatible with 500A air-cooled, 600A and 800A liquid-cooled systems, as well as MCS distributors, with an output current range of 250A–1500A. The system supports various high-power charging scenarios, including passenger cars, commercial vehicle fleets, electric trucks, electric aircraft, and more, enabling scalable rapid charging infrastructure deployment.

Technical Summary Table

Specification	MIDA HPC 600kW	MIDA HPC 800kW
Architecture	Split-Type (Cabinet + Satellites)	Split-Type (Cabinet + Satellites)
Max Output Voltage	150V - 1000V DC	150V - 1000V DC
Max Output Current	600A (Liquid-Cooled)	800A (Liquid-Cooled)
Efficiency	$≥$ ≥ 96.5%	$≥$ ≥ 96.5%
Power Modules	SiC High-Frequency IP65	SiC High-Frequency IP65
Communication	OCPP 1.6J / 2.0.1 / ISO 15118	OCPP 1.6J / 2.0.1 / ISO 15118
Protection Grade	Cabinet IP55 / Module IP65	Cabinet IP55 / Module IP65

High Efficiency and Energy Conservation

Ultra-wide operating temperature

Ultra-low standby power consumption

Wide output constant power range

Guaranteed Security

600kw 720kw 800kW Split EV Charging Stack DC EV Charging Station

Multi-standard DC Charging Station

Simultaneously charging up to 3 EVs
- Flexible configurations 240kw 360kw 480KW 600KW 720KW 800kW DC Charging Station
- Supporting CCS, CHAdeMO, GB/T, and NACS Plug
- Ethernet, Wi-Fi, 4G connection
- OCPP 1.6J & OCPP 2.0
- Smart charging supports dynamic load balancing

Easy to Use

8’’ LCD touch screen with multi-language interface
Secure authentication and payment through RFID, mobile Apps, or POS
CCS2 GB/T Plug & Charge optional
GPRS、COM、CAN2.0
480kw 600Kw 720kW 800kW CCS2 GB/T Split DC EV Fast Charging Station Charger ,Split DC Fast EV Charger Station,600kW 720kw 800kW Public Charging Station,DC Split Charging Systems Floor-mounted 480kw 720kw 800kw Commercial Electric Vehicle Charging Stations

600kw 800kw Split DC Charging Station

Multi-standard DC Fast Charging Station
- Supports CCS, CHAdeMO, GB/T, and AC connectors. Charging up to 3 vehicles at the same time
- Dual CCS2 ,GB/T,CHAdeMO DC Connector with Split Rapid Charger Station
- 240kw 360kw 480kw 600kw 700kw DC Charging Station With CCS2 GB/T CHAdeMO NACS Plug
- Split DC Charger Station 360kw 480kw 600kw 720kw DC Ultra Fast Electric Vehicle Charger Station
