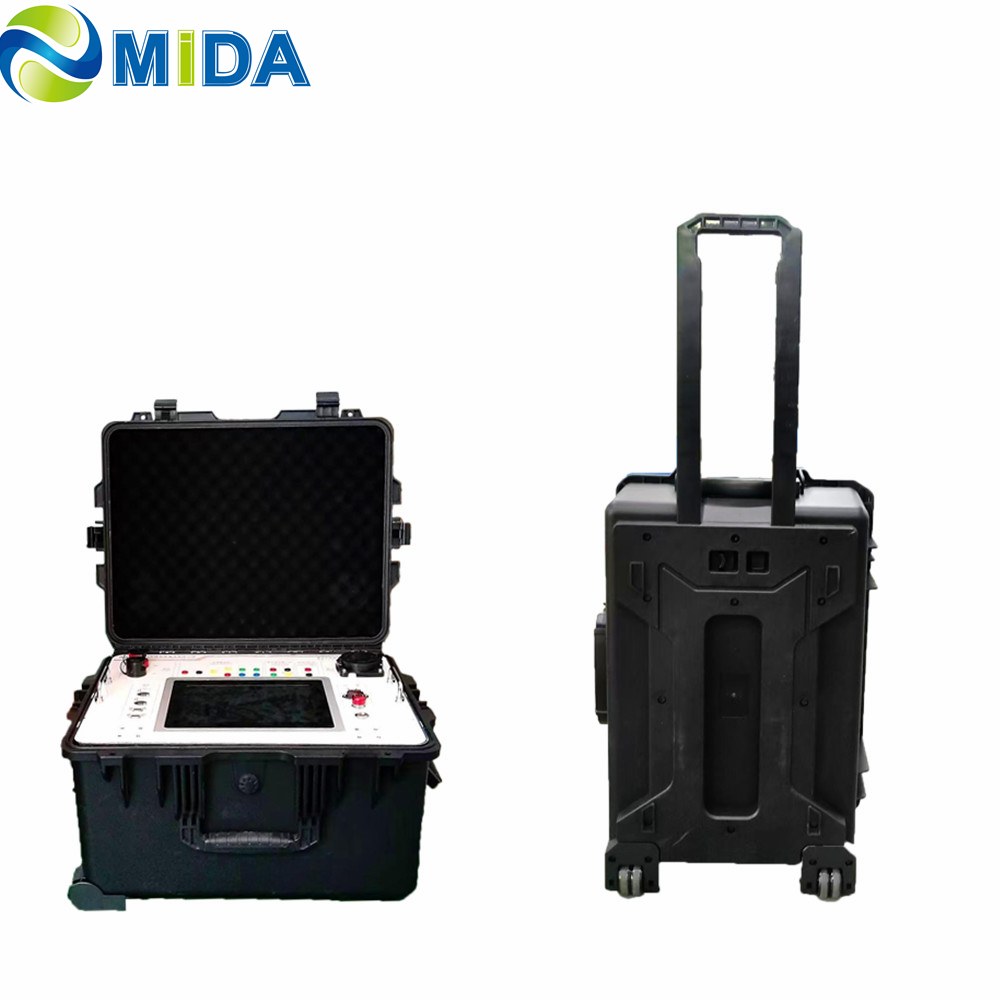

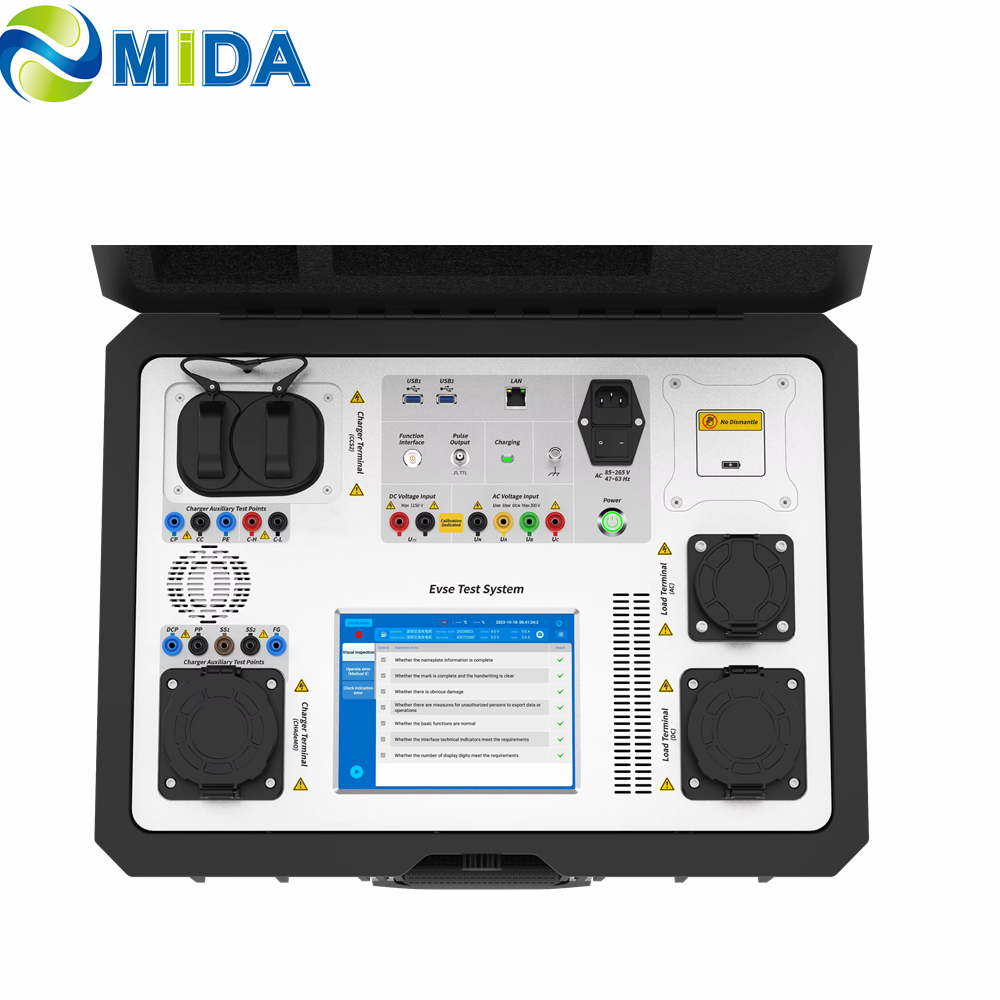

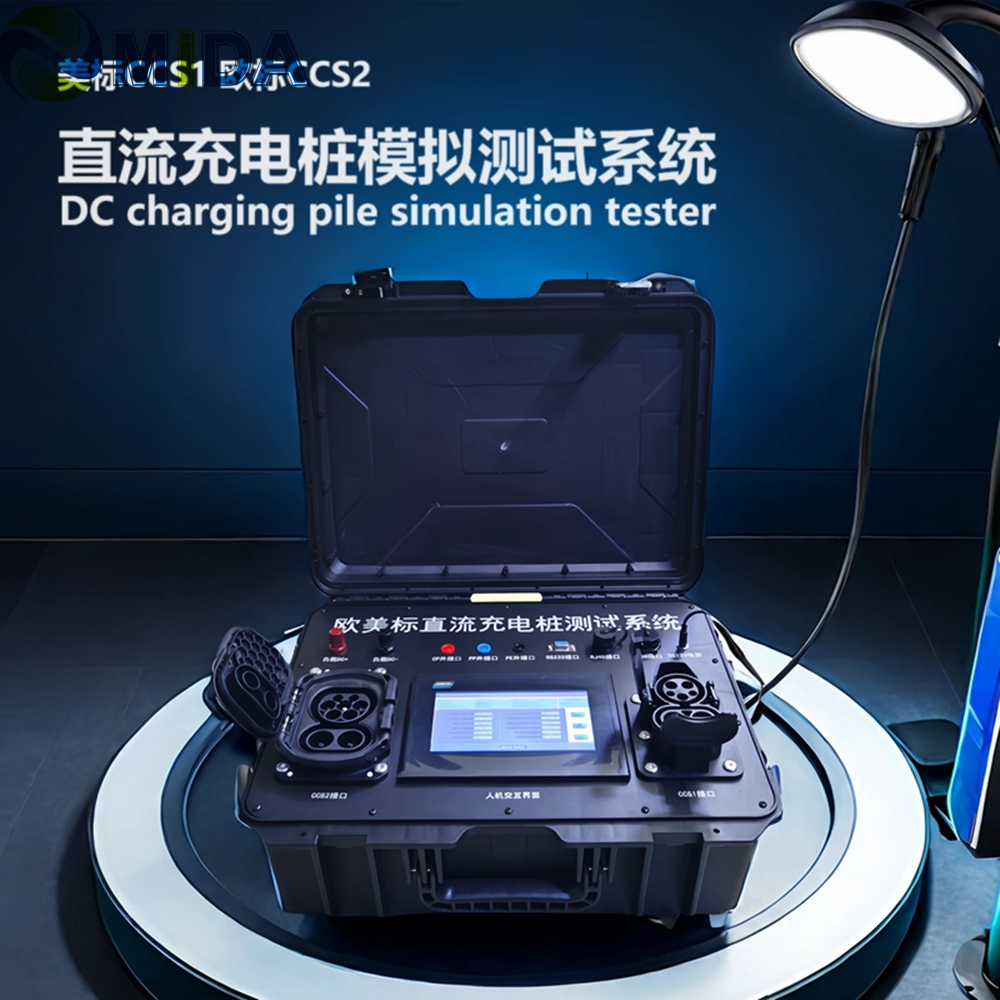

CCS2 CHAdeMO Fast EV Charging Station Analyzer DC Charger Tester Simulating

CCS2 CHAdeMO DC EV Charger Tester

A chademo ccs2 ccs1 gbt nacs DC charging station tester is an instrument used to verify the functionality, safety, and accuracy of DC electric vehicle (EV) charging stations. It is typically validated by simulating electric vehicles and performing various tests such as power, communication protocols, and safety checks. These testers are crucial for the installation, debugging, maintenance, and performance verification of DC chargers to ensure their compliance with national and international standards.

Types and functions of DC charging station testers
Integrated portable tester: These compact devices integrate multiple testing functions and typically come with built-in or expandable loads, making it convenient for a single person to conduct on-site testing.
Integrated AC/DC tester: Some devices can test both AC and DC chargers simultaneously and have high energy measurement accuracy.

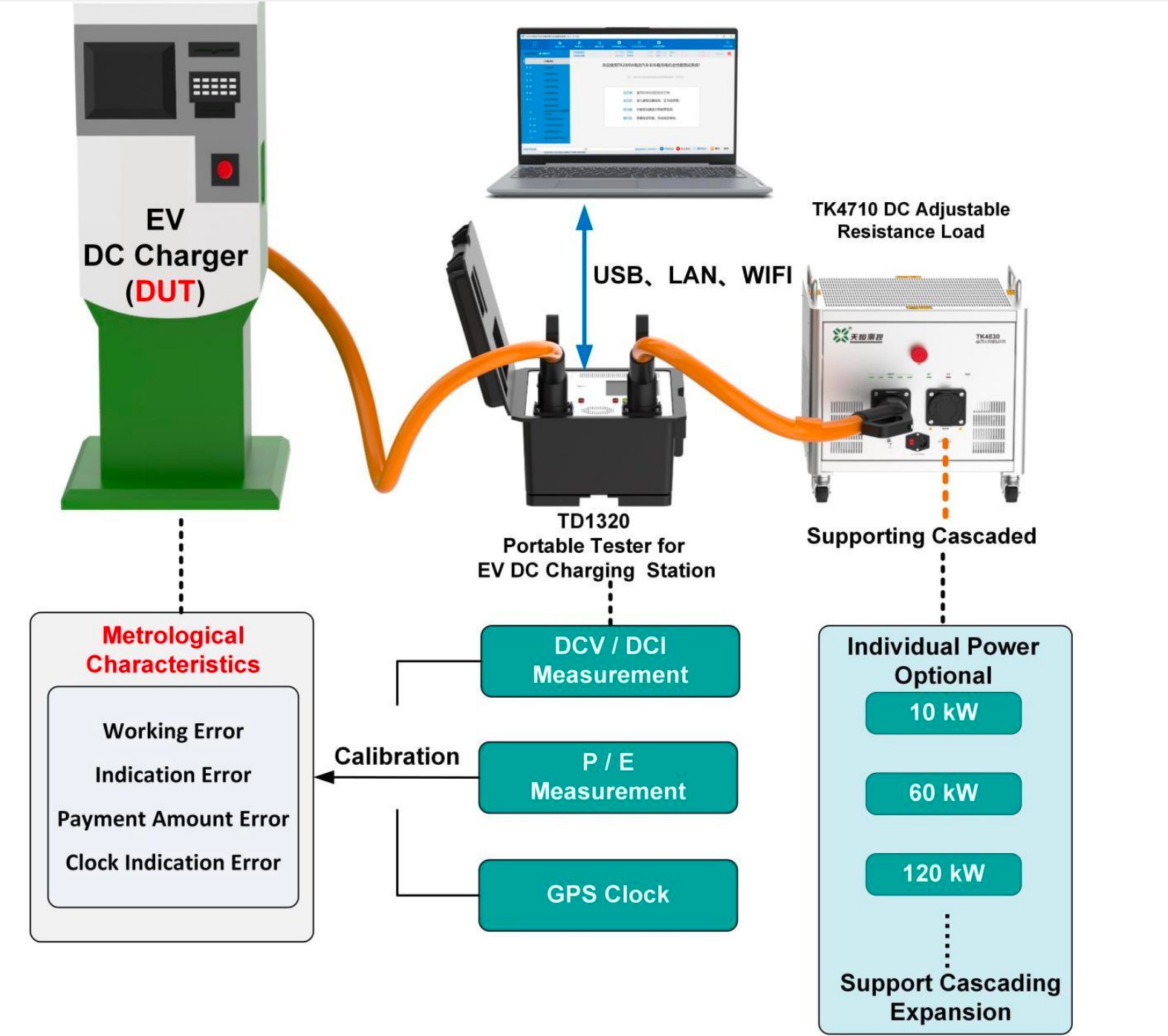

Load box: The tester can be used in conjunction with an adjustable resistor load box to perform high-power testing and verify the performance of the charger under load.
Battery Management System (BMS) Simulator: Some professional testers include BMS simulators to check the communication between chargers and vehicle batteries.
Measurement and calibration tools: Specialized equipment can be used for on-site calibration to ensure that the measurement accuracy of the charging station meets regulatory requirements.
Main features and functions
Load testing: Simulate the power demand of an electric vehicle using an internal or external load box.
Communication testing: Use a specific communication protocol to verify whether the communication between the charging station and the vehicle is correct.
Safety and installation inspection: It can test safety characteristics such as insulation resistance and grounding continuity, and perform general installation inspections.
Performance and accuracy verification: Measure the accuracy of energy output and check for issues such as work errors and clock errors.
Compatibility: Supports various charging standards and connectors, such as GB/T, CCS, and CHAdeMO.
