CCS1 NACS DC Fast Charger Station Analyzer EVSE Portable Tester for EV Charging Piles
What is a DC Fast Charger Station Analyzer?
Unlike simple testers that only check for continuity, a DC Fast Charger Station Analyzer is a sophisticated EV simulator. It mimics the behavior of an electric vehicle to "handshake" with the Charging Station (EVSE).
By simulating various vehicle states (State A through State D), the analyzer tests the station’s response to:
- Proximity Pilot (PP) and Control Pilot (CP) signals: Ensuring the physical connection and communication link are stable.
- Digital Communication Protocols: Verifying ISO 15118 and DIN 70121 standards, which govern the complex data exchange for DC fast charging.
- Power Delivery: Measuring real-time voltage and current to ensure the station provides the advertised power levels without fluctuations.
3. Key Features of the Portable EVSE Tester
A professional-grade analyzer must be built for the field. The CCS1 NACS Portable Tester is engineered with the following high-tier specifications:
Dual-Protocol Support
The most significant feature is the native support for both CCS1 and NACS. Technicians can switch between interfaces to test legacy units and the latest NACS-equipped superchargers using a single integrated platform.
High-Voltage Safety & Precision
With the industry moving toward 800V and 1000V platforms, the analyzer is built to handle extreme electrical stress. It features high-precision sensors to monitor DC bus voltage and ensures that the isolation monitoring system of the station is functioning correctly to prevent ground faults.
Real-Time Waveform Analysis
Modern chargers use Pulse Width Modulation (PWM) and Power Line Communication (PLC). The analyzer captures these high-frequency signals, allowing technicians to see if a charging failure is due to "noise" on the communication line or a software timeout in the EVSE controller.
Portability and Durability
Designed for field use, the tester is housed in a rugged, weather-resistant casing. Its portable form factor means a single technician can perform a full station audit without needing a test vehicle, significantly reducing operational costs.

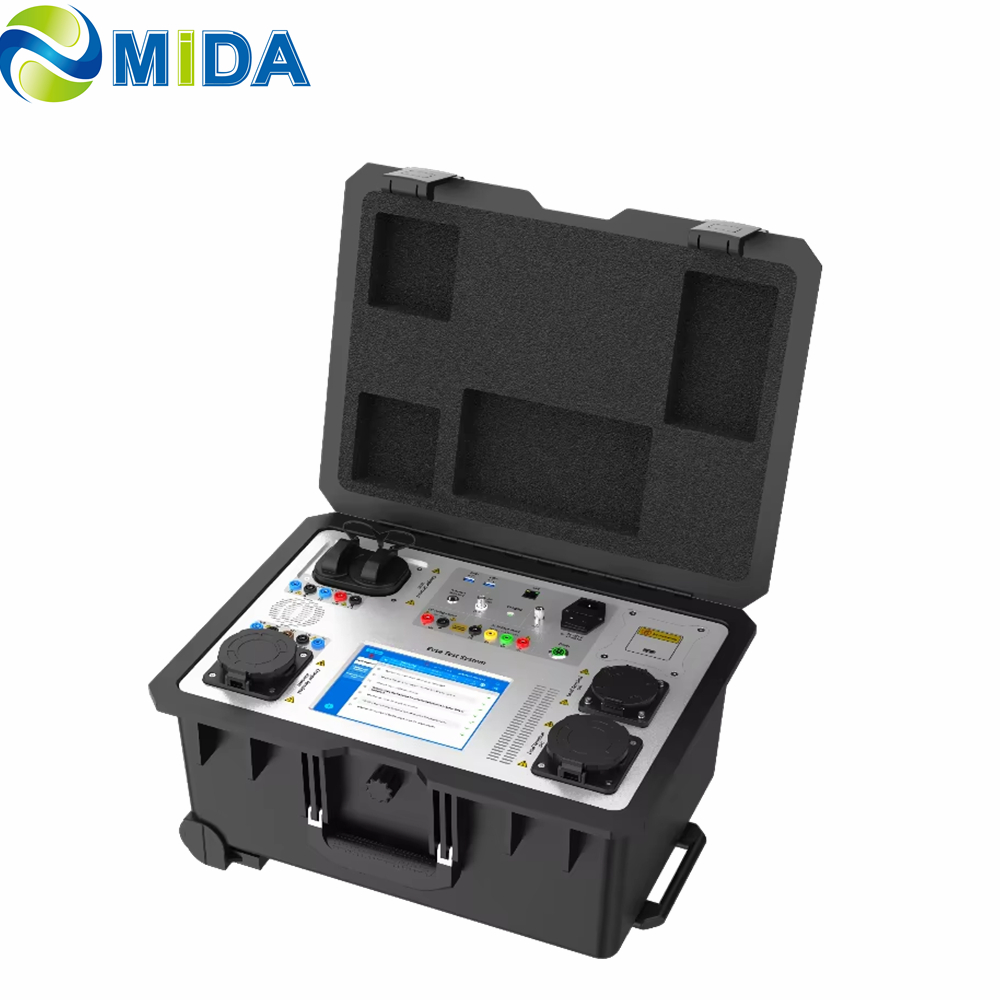

CCS1 NACS DC Charger Station Tester
- Multi-Protocol Support: Fully compatible with GB/T, CHAdeMO, CCS1, CCS2, and Tesla.
- Versatile Scenarios: From R&D and factory debugging to lab testing and on-site maintenance.
- Intuitive Interface: High-response touchscreen plus tactile buttons with color-coded status lighting.
- Industrial Build: Built-in resistive load with an independent cooling duct for enhanced durability.
- Universal Connectivity: Freely combinable interfaces; CCS1/CCS2 ports support both AC and DC testing.
- Efficiency Driven: User-friendly bilingual UI designed to streamline detection and improve company-wide productivity.

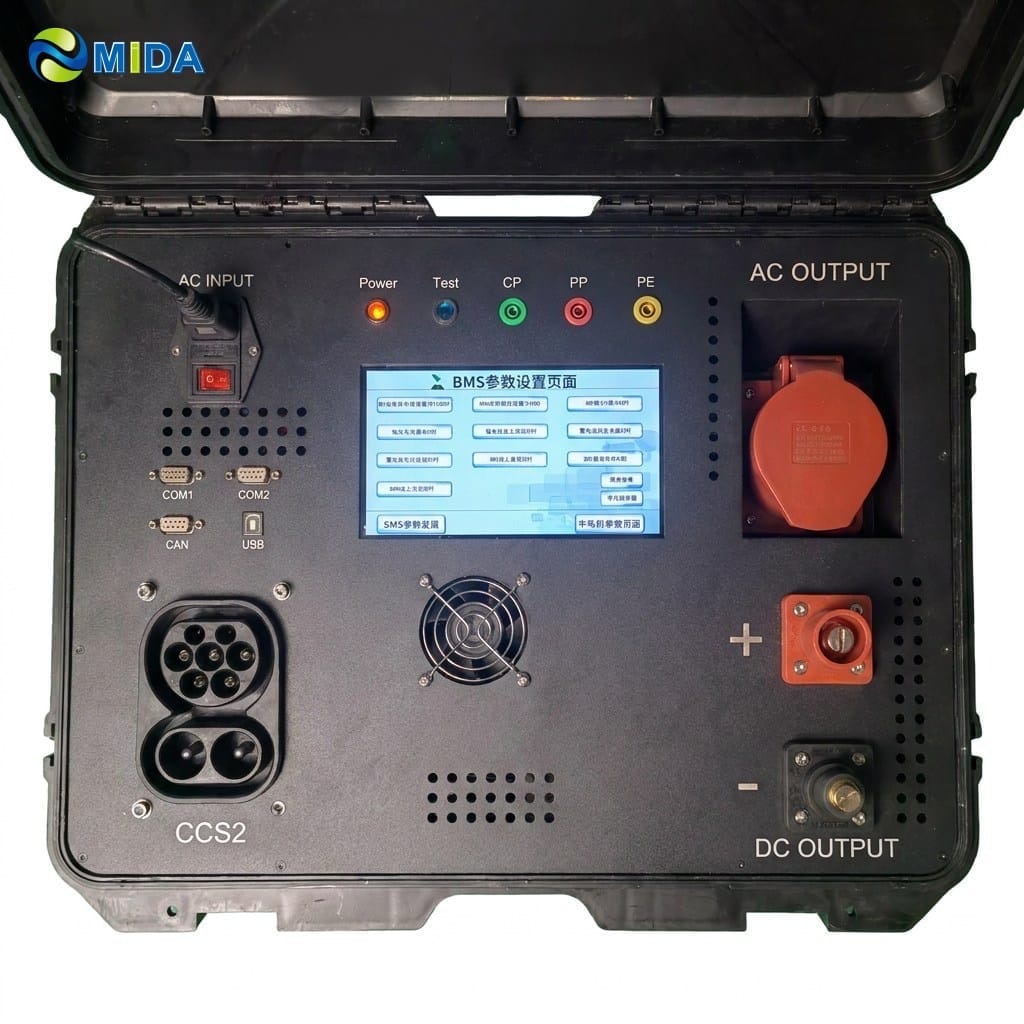

CCS NACS CHAdeMO DC Charger Station Tester Systems
The DC EV charger tester is developed by MIDA. It supports GB/T, CHAdeMO, CCS1, CCS2 and Tesla .It can be used in various scenarios such as factory debugging of EV charger, on-site EV charger testing, laboratory EV charger testing, and EV charger R&D testing.It adopts a touch screen plus button design, and distinguishes the color indicators. When the button is pressed, the indicator light will light up. Comes with resistive load; various charging interfaces can be freely combined, CCS1 and CCS2 interfaces are universal for AC and DC; independent cooling air duct design; simple interface,
The modern EV driver expects a "plug and play" experience similar to refueling a gasoline car. However, the underlying technology of an EV charging station is far more complex. The CCS1 NACS DC Fast Charger Station Analyzer bridges the gap between complex engineering and reliable user experience.
By providing detailed logs that can be exported via USB or Bluetooth, the analyzer creates a "birth certificate" for every charging session test. These logs are vital for:
Warranty Claims: Providing proof of equipment failure to hardware vendors.
Compliance Audits: Meeting the requirements of government grants (such as NEVI in the U.S.).
Firmware Optimization: Helping software engineers refine the charging algorithms.
The CCS1 NACS DC Fast Charger Station Analyzer is more than just a piece of test equipment; it is an insurance policy for the EV revolution. By providing technicians with the tools to master the complexities of dual-protocol, high-voltage charging, we ensure that the transition to sustainable transport is built on a foundation of reliability and safety.
For companies looking to lead the market in EV infrastructure, adopting advanced diagnostic tools is the first step. Whether you are troubleshooting a 60kW urban charger or a 400kW highway ultra-fast stack, the ability to analyze and verify the CCS1 and NACS interfaces is the key to staying ahead in a rapidly evolving industry.
