120kW 160kW 180kW Level 3 DC Charger CCS1 Dual Port EV Fast Charger & Pedestal Unit

Product Introduction

Optimized Urban Infrastructure for High-Traffic Locations Modern urban infrastructure requires charging solutions that are both powerful and space-efficient. The MIDA 120kW, 160kW, and 180kW Level 3 DC Charger is engineered to meet these needs, providing a robust pedestal-mounted solution for public and private environments. This power range is perfectly suited for “opportunity charging” at shopping centers, restaurants, and municipal parking facilities, where drivers seek substantial range gains in a short period. The integrated pedestal unit not only offers structural durability but also simplifies the installation process in high-traffic areas where space is at a premium.

Concurrent Charging with Dual CCS1 Port Reliability This specific model is equipped with dual CCS1 ports, the primary standard for fast charging in North America. By utilizing two identical high-speed connectors, the station can service two electric vehicles concurrently without the need for adapters. The internal architecture features modular power conversion units, which allow for high reliability; even if one module requires maintenance, the charger can continue to operate at a reduced capacity, ensuring consistent service. The system’s wide output voltage range, reaching up to 1000V, makes it compatible with both standard 400V and emerging 800V high-performance EVs.

Premium User Experience and Smart Network Integration Reliability and user interaction are paramount in the MIDA design. The station features a high-resolution, sunlight-readable touchscreen that guides users through the charging process with clear instructions. Safety is ensured through a comprehensive suite of protections, including over-voltage and ground fault monitoring. With advanced communication capabilities via Ethernet, 4G, and Wi-Fi, the charger connects effortlessly to back-end management systems via OCPP. This allows operators to monitor usage patterns, manage energy costs through load balancing, and ensure the infrastructure remains at the cutting edge.

Technical Specifications

Key Technical Features

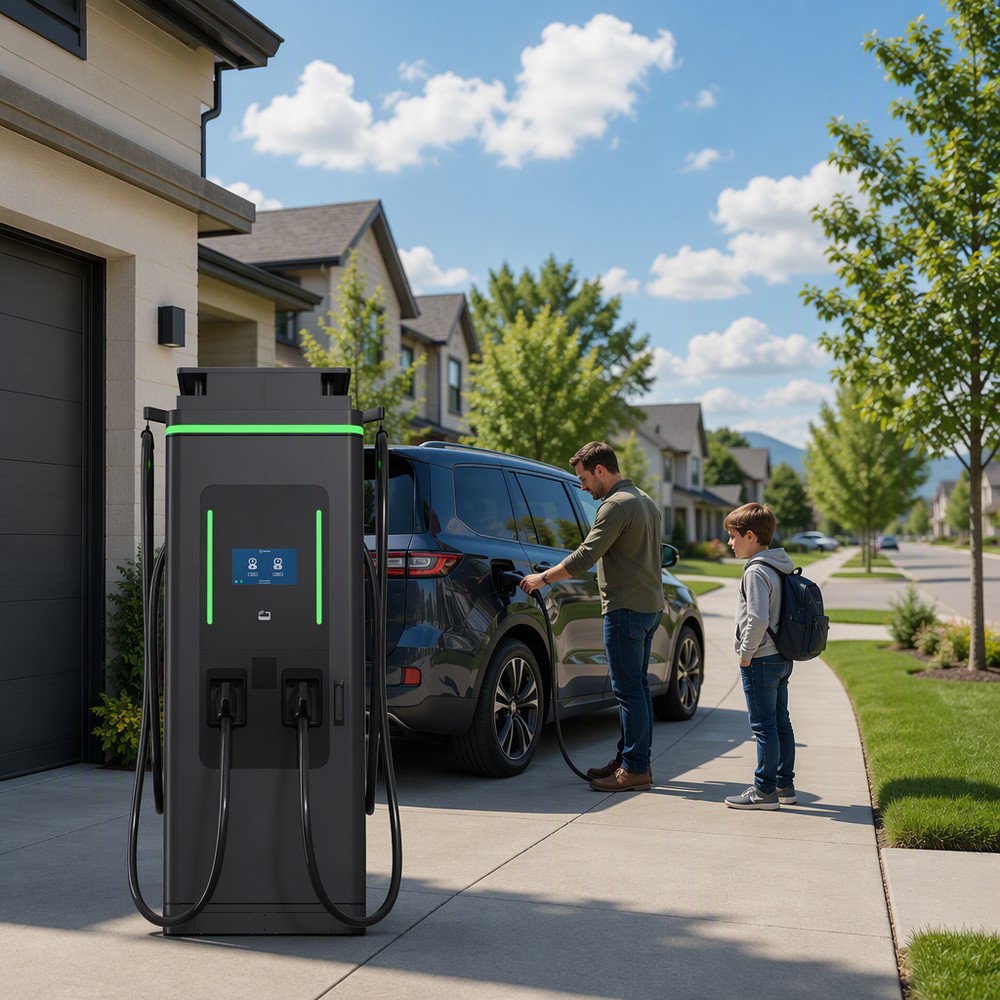

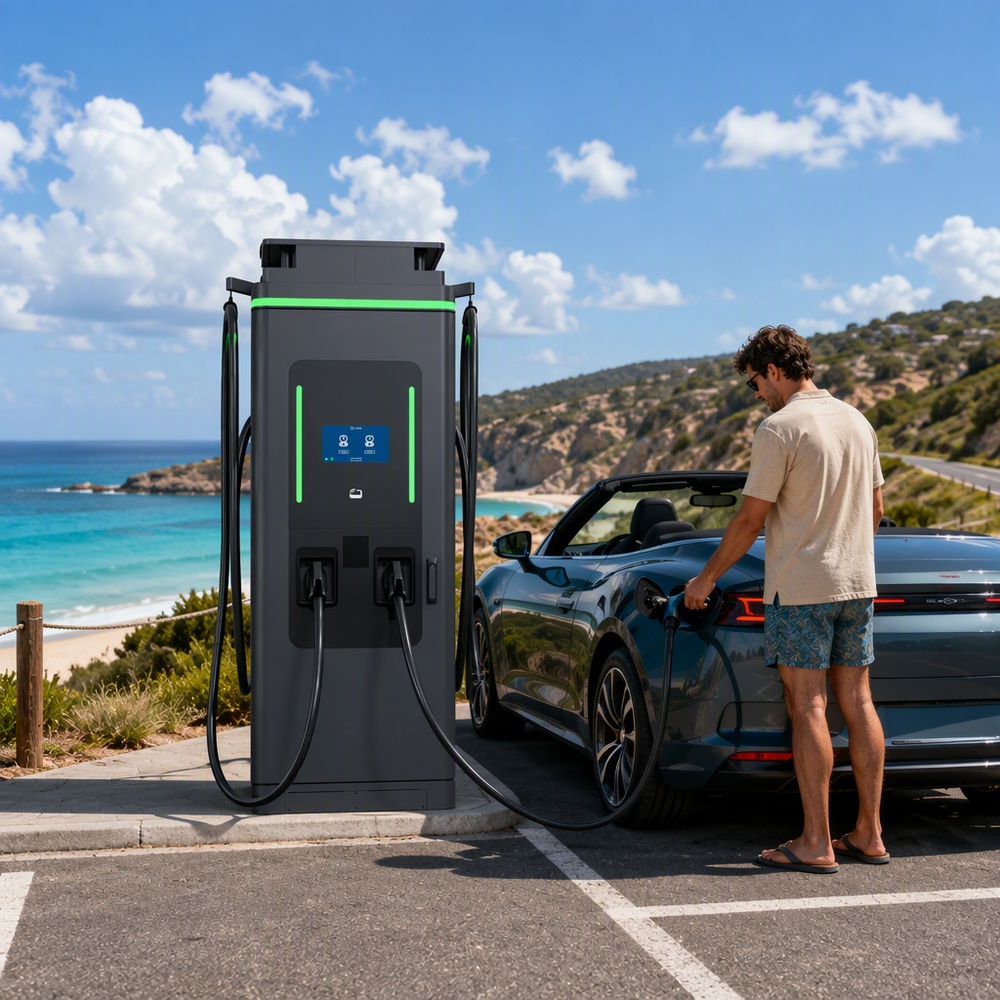

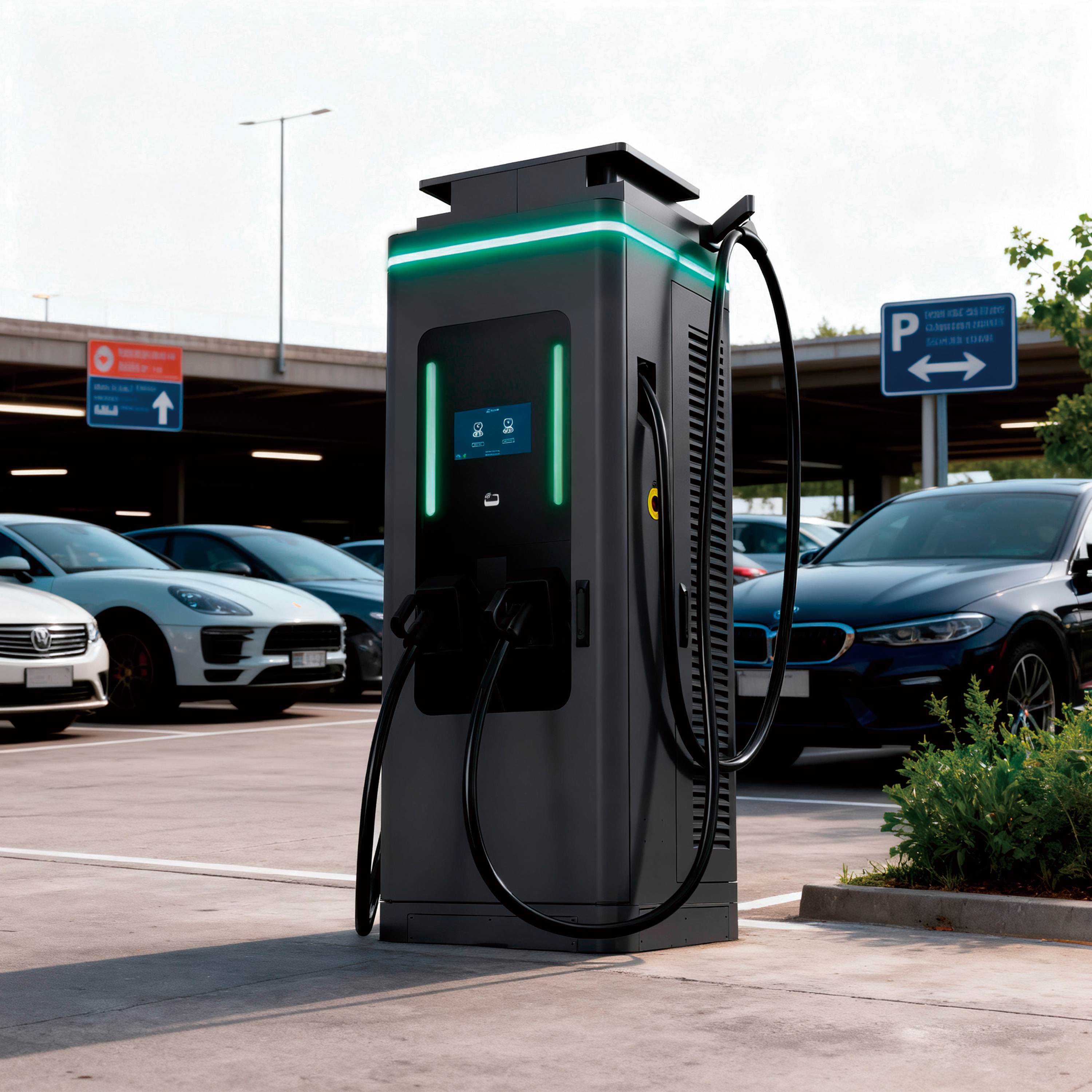

1. Robust Pedestal Design

Engineered for stability and outdoor durability, the pedestal unit features an anti-corrosion coating and IK10 impact resistance, suitable for public parking and coastal environments.

2. Intelligent Power Allocation

Dynamic load balancing between the dual CCS1 ports ensures optimal charging speeds for both vehicles simultaneously, maximizing the utility of the available grid capacity.

3. Sunlight-Readable Touchscreen

The 10-inch HMI provides a clear, interactive experience even in direct sunlight, supporting credit card payments and RFID authentication for ease of use.

4. Advanced O&M Connectivity

Full remote monitoring and diagnosis via OCPP minimize the need for on-site visits, allowing for OTA (Over-The-Air) firmware updates and real-time status reporting.
