1500A 3000A Megawatt Charging Connector MCS Charger System

1000A ,1500A ,3000A MCS Charging Connector .The Megawatt Charging System (MCS Connector) that emerged from this is to provide power at up to 3.75MW (max. 3,000A/max. 1,250V) in its final stage of development.for long-haul electric trucks and other energy-intensive vehicles.

Model: MIDA-MCS-EV3000A

Rated voltage: DC 1000V

Rated Current: 1000A ,1500A,3000A

Therminal temperature rise: <50K

Protection Degree: IP55 Waterproof

Withstand voltage: 2000V

Working temperature: -30°C ~+50°C

Standard: IEC TS61851-23-3, IECTS63379

Certificate: CE, TUV Approved

Inquiry WhatsApp Skype Email

Product Detail

Product Tags

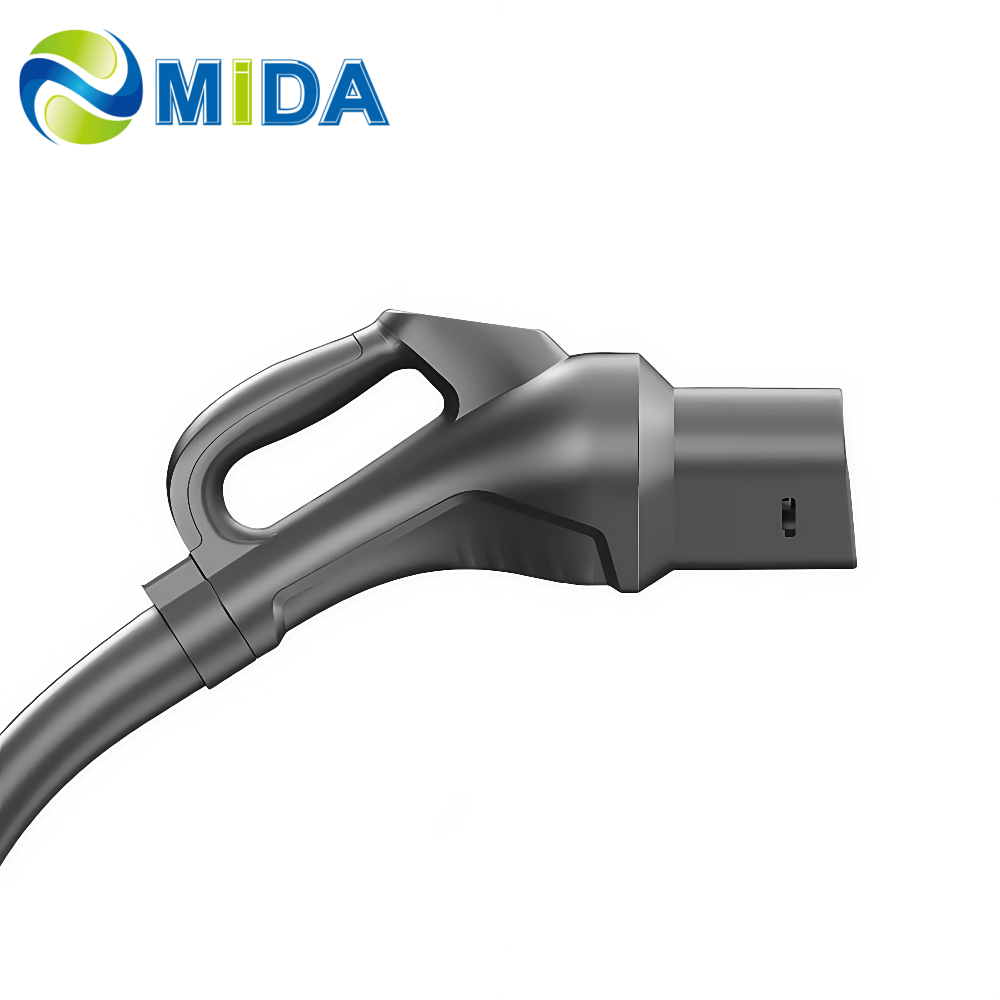

1500A 3000A Liquid Cooling MCS DC Charging Cable

1500A 3000A megawatt level charging connector MCS charging system

The electrification of commercial vehicles requires a significant increase in charging capacity in order to achieve the fast charging required in this field. The resulting megawatt level charging system (MCS connector) can provide up to 3.75MW (maximum 3000A/maximum 1250V) of power in the final development stage.

Such high currents place extremely high demands on connectors, sockets, and cable systems, requiring a deep understanding of various electrical, thermal, and safety related factors. In terms of infrastructure, the usability of the system is one of the most important research and development goals. It is necessary to ensure that a person can easily insert the connector of the charging cable into the charging socket. In terms of vehicles, the weight and efficiency of the system are crucial. All components of MCS must adopt an active cooling system to meet the requirements.

The 3000A MCS charging interface adopts indirect cooling, efficient distribution, and coolant to provide coolant for the charging socket.

MIDA applies its rich experience in the CCS field to cable solutions to meet future needs. The latest developed charging infrastructure cable adopts direct and indirect cooling design, and the final version can withstand up to 3000A of current. In addition, these cables comply with all regulatory requirements, ensuring maximum safety for charging station operators.

1000A 1500A 3000A Megawatt Charging system is based on midapower’s market-leading distributed charging system and offers maximum flexibility during the upcoming MCS transition phase.IEC 61851-1 , IEC TS61851-23-3and IECTS63379 for connection devices for conductive charging of electric vehicles .

The Megawatt Charging System (MCS) is a charging connector under development for large battery electric vehicles. The connector will be rated for charging at a maximum rate of 3.75 megawatts.3000A 1250V.

Megawatt Charging System (MCS)" to invent a holistic system approach based on the Combined Charging System CCS. The Megawatt Charging System (MCS) Task Force represents the whole value chain of the Heavy Duty Vehicles industry segment which ensures that all perspectives are considered.

Where is the MCS Charger Cable used ?
MCS charging cable technology will provide ultra-fast charging for heavy-duty trucks, ships, and aircraft. Its application areas are extensive, covering many industries such as commercial vehicles, maritime, agriculture, mining, and aviation.

This MCS charging port, which complies with the megawatt charging system (MCS) standard, provides the charging speed, safety, and durability required for the most demanding applications, from electric heavy-duty vehicles to large energy storage systems, breaking through the limitations of traditional charging.

How to use MCS charging connector?

To use a megawatt level charging system (MCS) connector, first locate the charging port on the heavy-duty vehicle, which is typically located between the driver's side axle. Then, connect the liquid cooled MCS cable (capable of withstanding high power) to the port of the vehicle.The megawatt level charging system (MCS) is a charging connector being developed for large battery electric vehicles. The rated maximum charging power of this connector is 3.75 megawatts, 3000 amperes, and 1250 volts.

What is the MCS communication protocol?

Multipoint Communication Service Protocol Specification defines a protocol operating through the hierarchy of a multipoint communication domain. It specifies the format of protocol messages and procedures governing their exchange over a set of transport connections.

Product Introduction

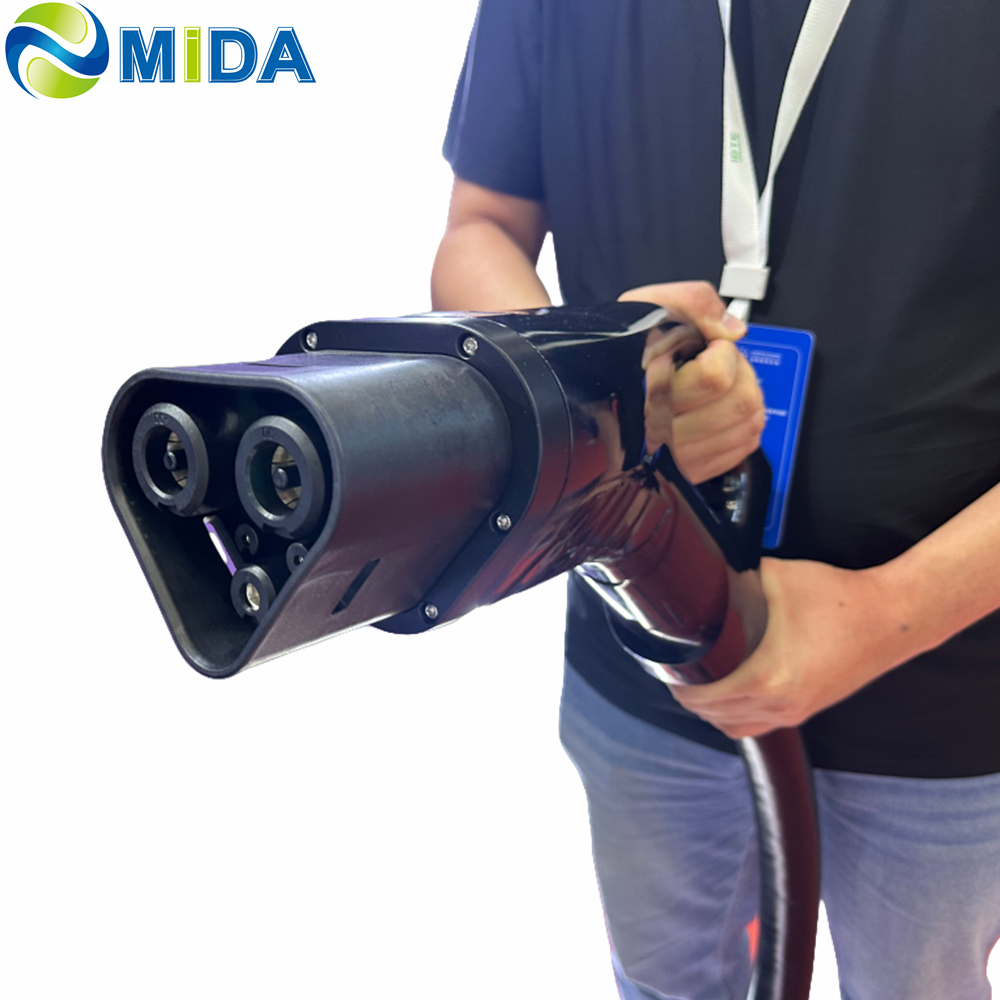

1000A 1500A 3000A MCS Charging Connector Megawatt Charging System

1000A 1500A 3000A MCS Connector (Megawatt Charging System) charging cable is a high-power charging solution designed specifically for heavy-duty electric vehicles such as trucks and buses, capable of providing up to several megawatts of power, significantly accelerating charging speed. These charging cables use dedicated connectors with sturdy and durable structures, and typically require active heat dissipation during high-power operation to safely and efficiently manage high currents.

Product Features

Key features of 1000A 1500A 3000A MCS charging cable
High power capacity: The MCS charging cable is designed to handle extremely high power, with a current rating of up to 3000 amperes and a power output of up to 3.75 megawatts.
Specially designed for heavy-duty vehicles: This system is specifically developed for large pure electric vehicles, such as long-distance trucks, buses, and other heavy-duty applications, such as electric ships and airplanes.
Durable and sturdy: MCS charging cables are designed to operate in harsh industrial environments, and many connectors have protection measures such as IP67 protection level.
Cable and connector cooling: Higher power levels (e.g. over 1 megawatt) require active cooling of connectors and cables to prevent overheating during charging.
Unique connector: The MCS connector is different from the combination charging system (CCS) used for passenger cars, although many electric trucks are now equipped with both interfaces.
