In contrast to classic plug-in charging systems, e-bus pantographs offer an automated charging process and enable better integration into existing depot infrastructures.
An electric bus pantograph system offers significant operational benefits over traditional plug-in cable chargers, particularly for high-frequency transit lines.
Operational Advantages
Continuous Fleet Operation: Buses can run 24/7 without returning to the depot by topping up during scheduled route stops.
Zero Driver Intervention: Drivers do not handle heavy, dirty cables. The automated connection raises or lowers at the touch of a button.
Reduced Fleet Size: Faster charging loops mean fewer buses are required to maintain the exact same route frequency.
Optimized Depot Space: Overhead gantries eliminate bulky ground cables, freeing up floor space and removing physical tripping hazards.
Vehicle and Battery Advantages
Lighter Buses: Opportunity charging allows buses to carry smaller, lighter battery packs.
Increased Passenger Capacity: Lower battery weight directly translates to higher passenger weight allowances.
Extended Battery Lifespan: Small, frequent charges (shallow cycling) keep the battery in its optimal temperature and chemistry zone.
Long-Term Financial Advantages
Lower Initial Vehicle Cost: Buying buses with smaller battery packs significantly reduces upfront fleet procurement costs.
Minimal Maintenance: Overhead mechanics are shielded from the ground-level wear, tear, and weather damage that ruin standard cables.

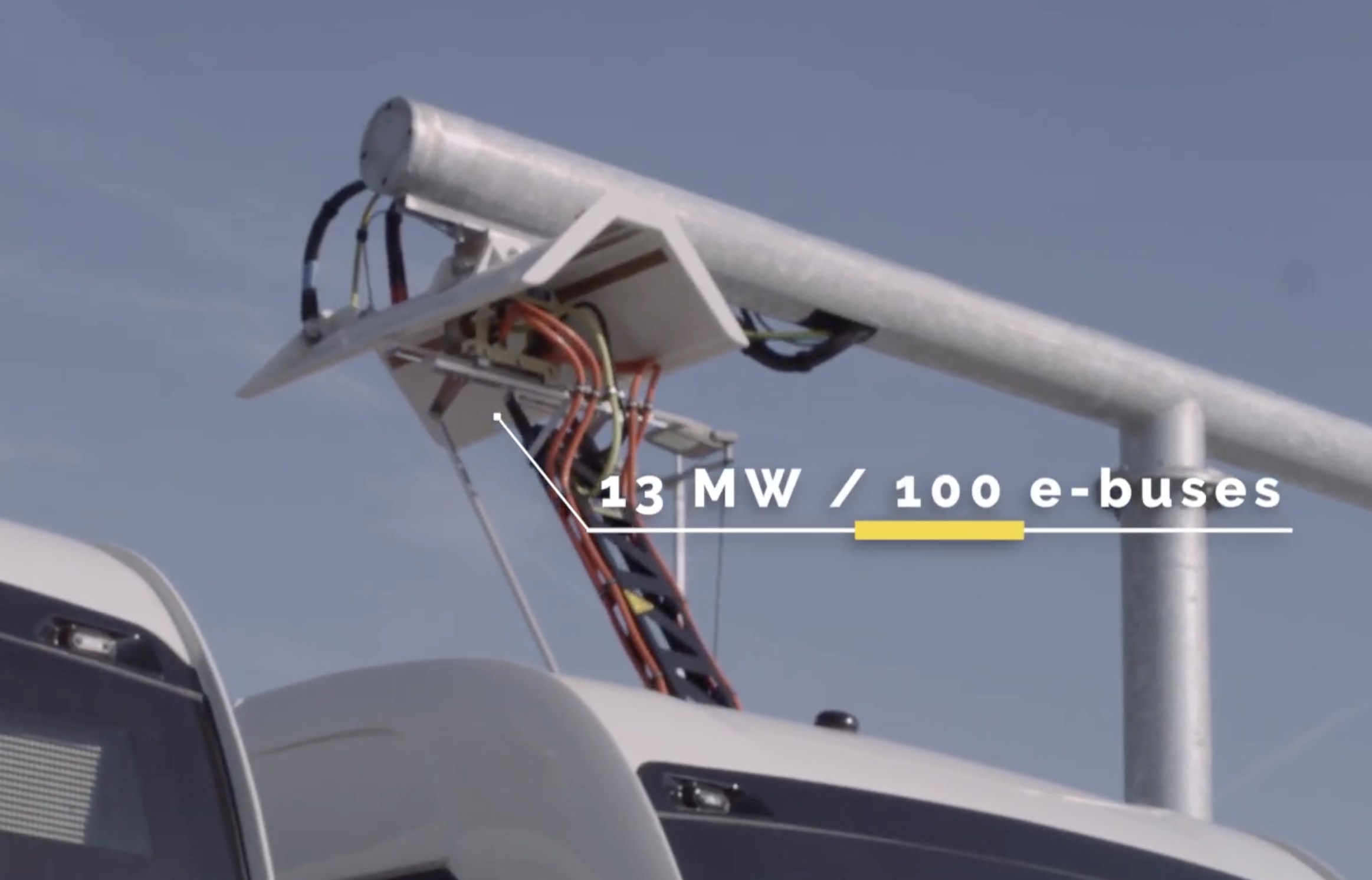

The “pantograph dome” (also known as the charging hood, contact dome, or A-shaped current collector) is the fixed, overhead receiver structure mounted on a station gantry or depot ceiling. In a Pantograph Up (Bus-Up) system, the bus-mounted arm rises and docks directly into this dome.

The specific advantages of utilizing an overhead pantograph dome infrastructure include:

1. High Misalignment & Parking Tolerance

• · Funneling Geometry: The dome features a wide, inverted V-shape or flared design. This acts as a mechanical guide, funneling the rising pantograph head into perfect alignment even if the driver doesn’t park perfectly.
• · Movement Compensation: It accommodates natural vehicle movement. The dome maintains a stable electrical connection even if passengers shake the bus or the chassis lowers via its “kneeling” function at curb stops. [1]

2. Lower Infrastructure Costs & Simplicity

• · Passive Design: The overhead dome is completely passive, meaning it contains no heavy motors, moving parts, or actuators.
• · Lightweight Gantries: Because the dome is essentially a set of fixed contact rails housed in a protective shell, the supporting steel gantries can be much lighter and less expensive than the heavy, reinforced structures required to hold a moving “Pantograph Down” system.

3. All-Weather Environmental Protection

• · Shielded Contacts: The dome acts as a physical roof or umbrella over the electrical contacts. It shields the high-voltage connections from rain, snow, ice, and direct UV degradation.
• · Low Maintenance: Keeping the complex moving mechanical parts on the bus roof—and the simple, rugged dome exposed to the elements—reduces roadside maintenance. Field technicians rarely need to climb service platforms to fix infrastructure.

4. Seamless Component Interoperability

• · Standardized Footprint: Manufacturers like MIDA design their systems to a universal standardized footprint (such as the standard 600 x 630 mm physical interface).
• · Cross-Brand Charging: A single overhead dome can successfully charge buses from entirely different manufacturers, provided they follow international standards like OppCharge or ISO 15118.

5. High-Power Safety & Quick Electrical Docking

• · Ultra-Fast Connection: The dome’s physical shape allows the bus pantograph to make high-power contact in under 5 seconds from the moment it leaves the bus roof.
• · No Exposed Live Rails: The high-voltage charging contacts inside the dome remain safely out of reach of pedestrians and ground-level traffic, removing the risk of vandalism or accidental human contact.
