Liquid Cooled Split DC Fast Charger DC Dispenser 800kW 960kW Ultra Fast Heavy Duty Vehicles

Liquid Cooled Split DC Fast Charger 800kW 960kW Ultra Fast Heavy Duty Vehicles

Product Overview

The Liquid Cooled Split DC Fast Charger 800kW 960kW targets heavy duty vehicles that demand enormous energy in short windows. This split type DC fast charging station separates a high-capacity power cabinet from rugged satellite dispensers, channeling ultra fast EV charging to electric trucks, buses and off-road machinery from a single liquid cooled power core.

Rated at 800kW and 960kW, the charger uses dynamic load balancing to concentrate power on the vehicles that can accept the highest current, then reallocates as batteries approach full charge. The fully liquid cooled architecture, including liquid cooled cables, sustains extreme output during continuous heavy duty operation, while CCS2 connectors and OCPP communication keep the system compatible with commercial charging networks.

Core Advantages

• Modular Scalable Power Cabinet – The 800kW to 960kW cabinet scales through additional power modules to match growing heavy duty demand.
• Dynamic Load Balancing – Adaptive power distribution maximizes charging speed for high-capacity truck and bus batteries.
• Liquid Cooling – Liquid cooled modules and cables enable ultra high current without thermal derating.
• CCS2 & OCPP – CCS2 guns and OCPP 1.6J/2.0.1 provide open compatibility for heavy duty fleets.
• High Uptime – Redundant modular design keeps critical logistics charging available around the clock.
• Low Per-Point Cost – One powerful cabinet driving multiple dispensers reduces cost per charging point.

Split-Type Architecture for Ultra-Fast Charging

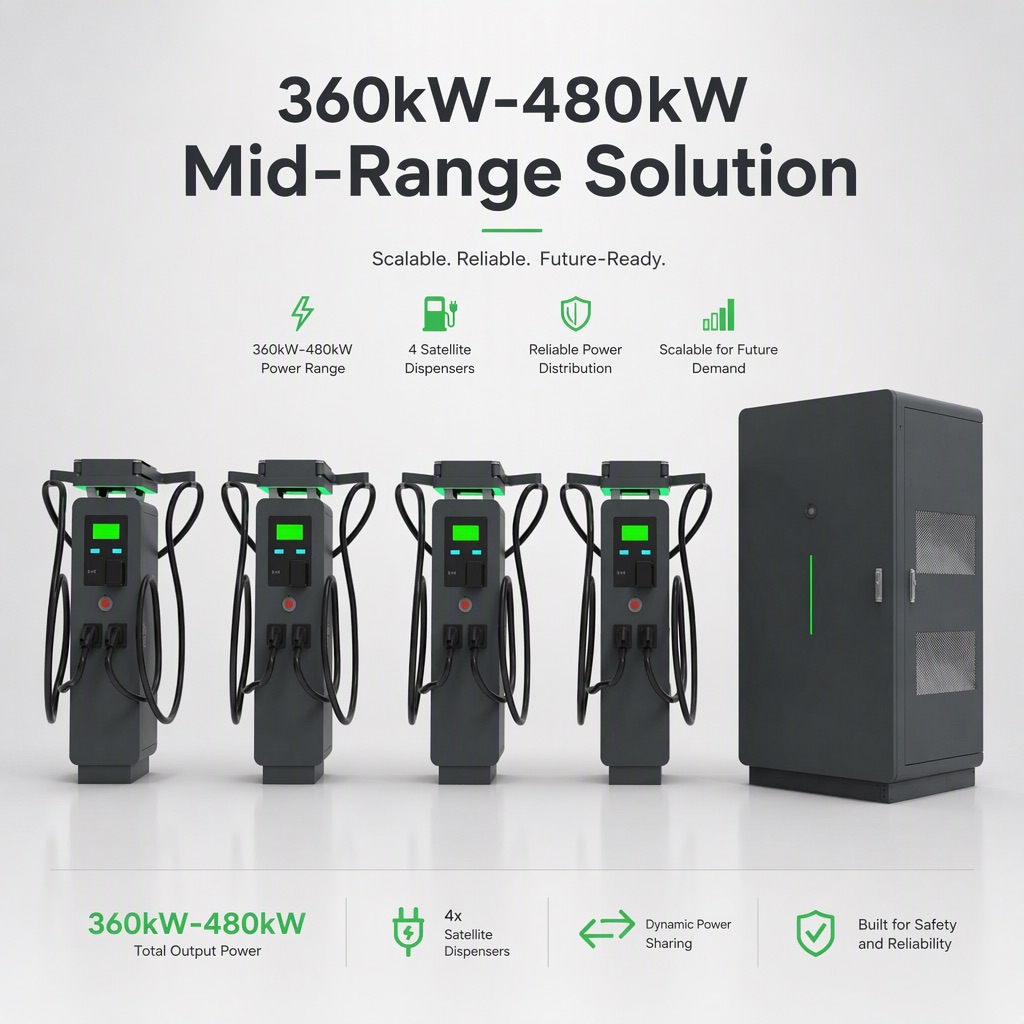

This split type DC fast charging station separates a central power cabinet from multiple satellite dispensers, delivering ultra-fast EV charging while minimizing the footprint at each parking bay. The modular power cabinet scales across the rated power segments to match site demand.

Dynamic Load Balancing and Liquid Cooling

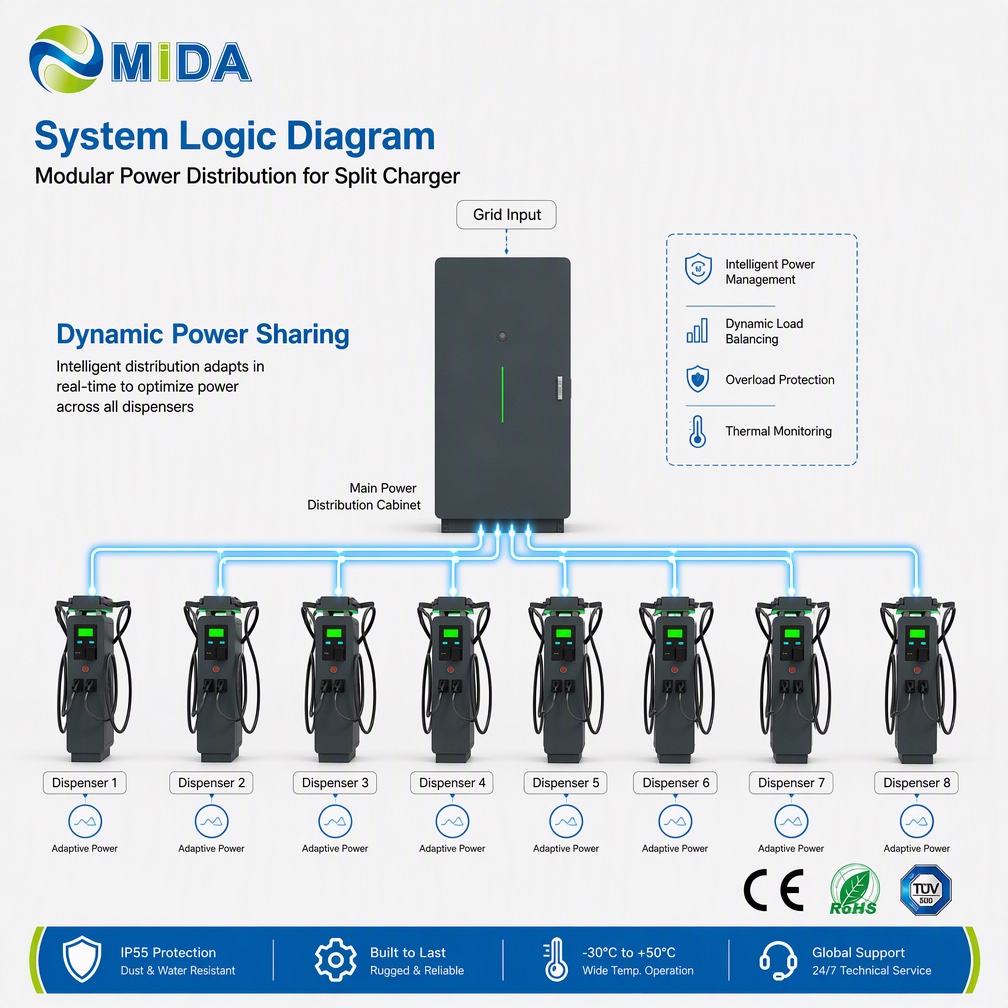

Intelligent dynamic load balancing allocates power in real time across every satellite dispenser, and liquid-cooled modules and cables sustain continuous high-current charging with low noise and high reliability for demanding duty cycles.

CCS2 and OCPP Ready for Any Network

With CCS2 connectors and OCPP 1.6J/2.0.1 communication, this high power split DC charger integrates seamlessly with charging network management platforms, supporting electric cars, buses and heavy-duty trucks on public and fleet networks.

Built for Highways, Depots and Fleets

Engineered for highway service areas, bus depots, logistics fleets and commercial charging hubs, the station combines high uptime, global CE/TUV certification and OEM/ODM flexibility for fast, cost-effective deployment.

Product Specifications

Application Scenarios

• Highway service areas equipped for electric heavy trucks.
• Bus depots with large-battery articulated fleets.
• Truck and logistics fleet terminals with intensive duty cycles.
• Public charging hubs supporting mixed heavy duty traffic.
• Commercial parking and industrial yards.

After-Sales Advantages

MIDA provides a comprehensive warranty, global CE and TUV certification support, OEM/ODM customization for heavy duty applications, and cloud remote diagnostics that keep high-power charging assets serviced and productive.

Explore related MIDA split DC charging solutions: Split Type DC Fast Charging Station 480kW, Ultra High Power Split DC Charger 720kW, Split Type DC Fast Charging Station 360kW, High Power Split DC Charging System 600kW.

Frequently Asked Questions

What is a split-type DC fast charging station and how does it work?

A split-type DC fast charger separates the system into a central power cabinet and one or more satellite charging dispensers. The power cabinet houses the rectifier modules (from 360kW up to 960kW) and intelligently distributes power to multiple dispensers, so operators can charge several electric vehicles at once while saving space at each parking bay. This architecture is ideal for highway stations, bus depots and commercial fleets.

How much power can MIDA split DC charging stations deliver — 360kW, 600kW or 960kW?

MIDA split-type DC charging stations are available in modular power ratings of 360kW, 480kW, 600kW, 720kW, 800kW and 960kW. Because the design is modular, operators can start with a lower power cabinet and scale up by adding power modules as demand grows, protecting the initial investment.

What is dynamic load balancing in a split DC charger?

Dynamic load balancing allows the central power cabinet to allocate available power intelligently across all connected satellite dispensers in real time. When one vehicle finishes charging, its power is automatically redirected to other active dispensers, maximizing utilization and reducing charging time for the whole station.

Which connectors and protocols do the split DC charging stations support?

The stations support CCS2 (and optionally CCS1, CHAdeMO or GB/T) connectors and communicate via OCPP 1.6J / 2.0.1 for seamless integration with charging network management platforms. This ensures compatibility with virtually all electric cars, buses and trucks on the market.

Are the split DC fast chargers liquid cooled?

Yes. High-power configurations (720kW, 800kW and 960kW) use liquid-cooled cables and modules to sustain continuous high-current charging while keeping temperatures and noise low. Liquid cooling improves reliability and extends equipment lifespan in demanding highway and heavy-duty truck applications.

What applications are split-type DC charging stations best suited for?

Split-type DC charging stations are ideal for highway service areas, public charging hubs, electric bus depots, logistics and truck fleets, and large commercial parking. The centralized power cabinet with multiple satellite dispensers lowers per-point installation cost and delivers ultra-fast charging where high throughput is required.
