300kW 360kW 400kW Level 3 DC EV Fast Charger & Pedestal Unit Power Cabinet

240kW 300kW 360kW 400kW Level 3 DC EV Fast Charger Station

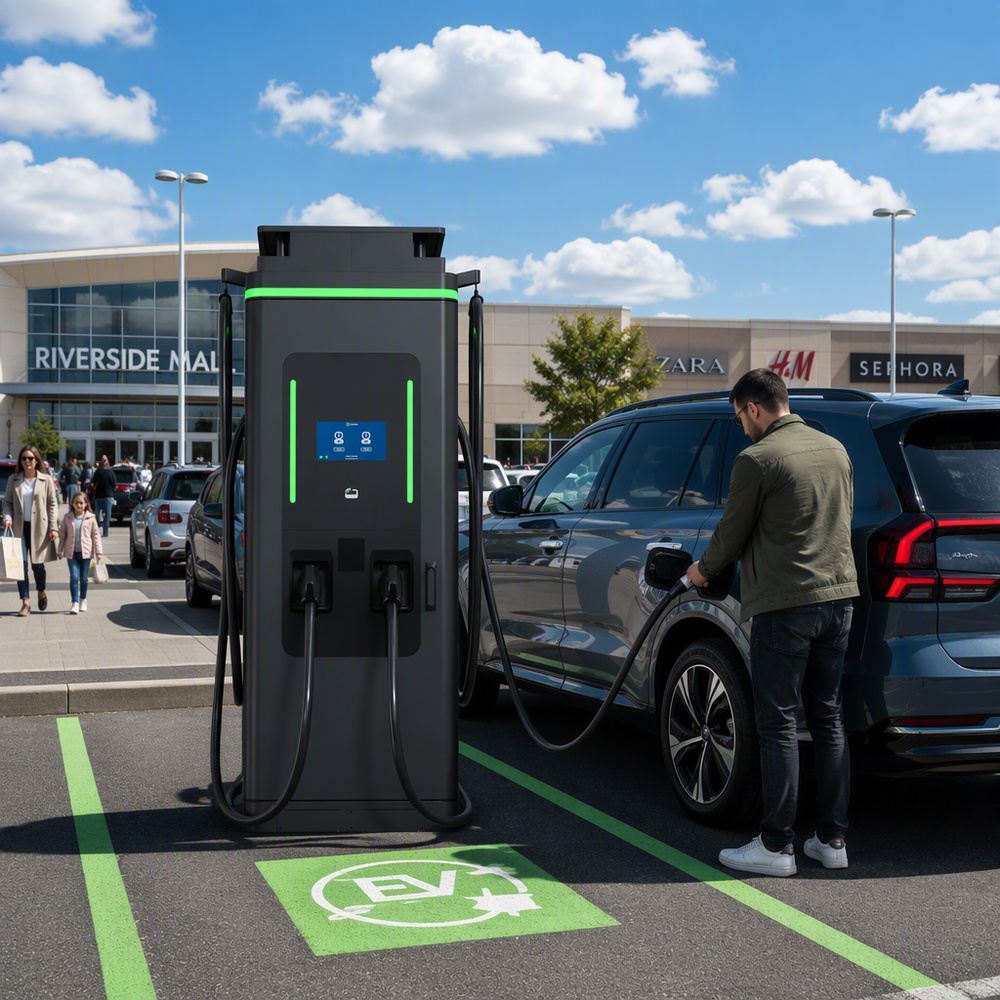

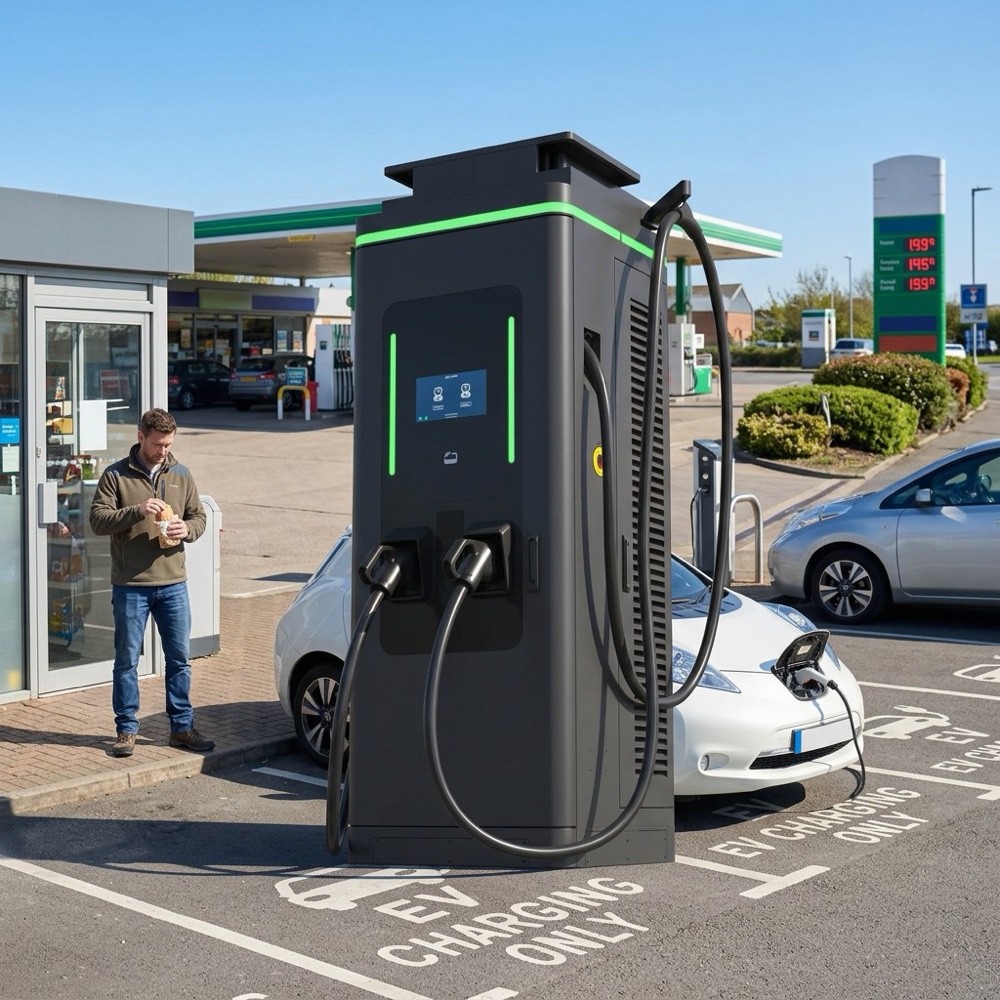

Ultra EV Charger 300kW, 360kW, or 400kW DC fast charging station belongs to the high-power charging (HPC) or “Ultra-Fast / Supercharging” tier of electric vehicle supply equipment (EVSE). These units are designed primarily for commercial public charging hubs, highway service areas, logistics depots, and passenger/heavy-duty fleet electrification.

Liquid-Cooled Cables & Guns:

1,Air-cooled CCS2 or NACS cables are generally thermal-limited to ~200A–300A continuous. To safely deliver 400A to 600A output at high power without overheating, liquid-cooled charging cables (utilizing a glycol or synthetic coolant loop) are standard for 360kW and 400kW configurations.

Dual-Gun / Multi-Port Dynamic Power Sharing:

1,These units almost always feature 2 to 4 charging connectors (CCS1, CCS2, NACS, GB/T, or CHAdeMO).
2, Dynamic Load Balancing: When two vehicles plug in simultaneously to a 360kW station, the charger dynamically matrix-switches power (e.g., 180kW + 180kW or 240kW + 120kW) based on each vehicle’s real-time state of charge (SoC) and capability.

Backend Communication & Standards:

1,Protocols: Built on OCPP 1.6J or OCPP 2.0.1 for network integration, remote monitoring, and billing backend connections.
2, User Authentication: Supports Plug & Charge (ISO 15118), RFID card authorization, mobile app control, and POS credit card readers. 3, Enclosure Rating: Typically IP54 / IP55 weatherproof and IK10 vandal-resistant for outdoor installation

Product Introduction

Specifications for 60kW-480kW DC Fast Charger Station   Rated Power : 60kW 80kW 120kW 180kW 240kW 300kW 400kW 480kW AC Input Voltage :400 Vac ±10%, 480 Vac ±10% Wide output voltage range of 150~1000VDC Rated Frequency: 50/60 Hz Output Current: 200/250/300A Output Efficiency: ≥95% IP/IK Degree: IP55 / IK10 Cooling: Force Fan Cooling Plug & Charge Capable Dynamic Load Balancing Manage Any OCPP Compatible CCS1 ,CCS2 ,NACS ,GBT,CHAdeMO ,MCS Dimension (W*H*D): 800*800*1800mm Certificate: TUV,CE,UKCA,EMC,LVD,CB,ETL, RoHS

Smart DC Charging Station (240kW 300kW 360kW 400kW 480kW) 1,Support OEM & ODM 2,White-labeled available 3, Tailored charging station management sub-portals 4,IP54 protection rating, waterproof, dust-proof, and corrosion-resistant 5,Protection against over-voltage, over-temperature, under-voltage, short circuit, leakage, over-current, etc Manage Any OCPP Compatible: Chargers Using Our Cloud Portal. Remote Update & Diagnostics Supported by Autel. Charge Cloud + App SaaS system, Reduce Operational Costs.Remote control and monitoring Plug & Charge Capable： Supports ISO 15118 Standard. Dynamic Load Balancing: Balance the Load to Better Adapt to Your Infrastructure.

Centralized Energy Management for Large-Scale Deployments Large-scale EV infrastructure deployments require a different approach to power management and site layout. The MIDA 300kW, 350kW, and 400kW Level 3 DC Fast Charger system utilizes a centralized Power Cabinet and remote Pedestal Unit architecture.  Charging Speed: Capable of adding 100–200+ miles of range in 10 to 15 minutes. An 800V-architecture vehicle (such as the Porsche Taycan, Hyundai Ioniq 5, or Kia EV6) can charge from 10% to 80% in roughly 15 to 20 minutes. Voltage Range: Typically 200V to 1000V DC, accommodating both 400V standard passenger EVs and high-voltage 800V/1000V commercial vehicles or luxury sports cars. Modular Power Architecture: Most 300kW–400kW cabinets utilize internal power conversion modules (e.g., 30kW, 40kW, or 50kW power units connected in parallel). This modular setup enables dynamic power distribution, load sharing, and service redundancy.

Technical Specifications

Key Technical Features

1. Centralized Power Cabinet

Consolidates power electronics for easier maintenance, improved cooling, and superior site security, while reducing the footprint of the charging stalls.

2. Flexible Pedestal Deployment

Compact, remote pedestals can be installed up to 100 meters away from the power cabinet, allowing for highly optimized parking layouts.

3. Scalable Modular Design

The power cabinet supports modular expansion, allowing operators to increase charging capacity as vehicle demand grows without replacing the entire system.

4. Advanced Energy Hub Capabilities

Integrated smart meters and cloud-connected diagnostics provide real-time visibility into energy flow, facilitating efficient site-wide energy management.
